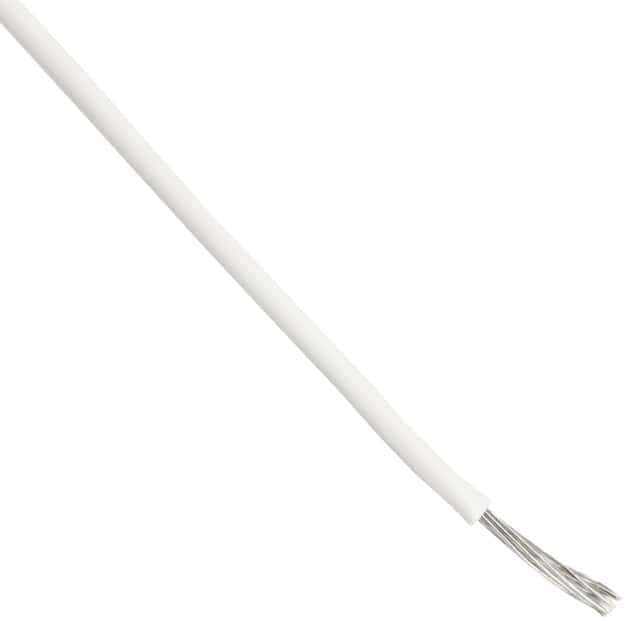

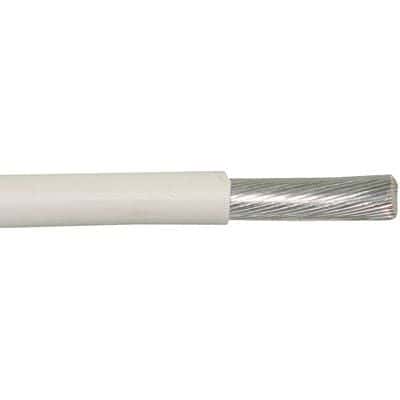

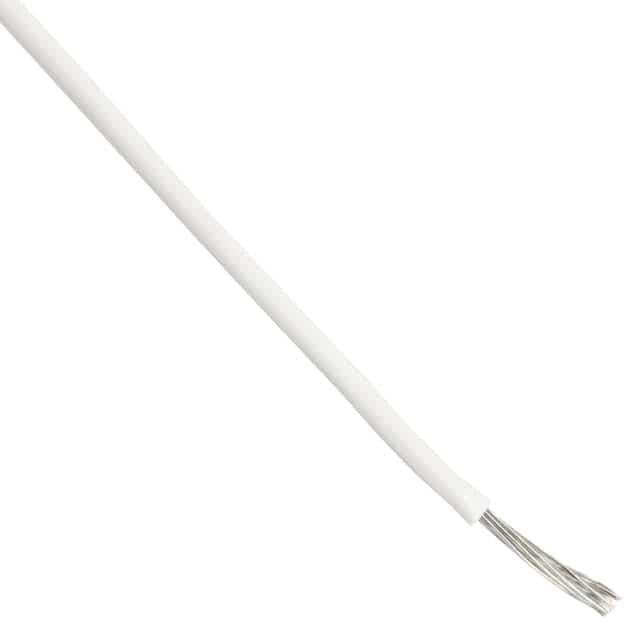

14AWG stranded hook-up wire, featuring a white MPPE insulation and a polyhenilether jacket. Conductor is copper with 41 strands of 30 AWG. Rated for 600V, it operates from -40°C to 105°C and handles a current of 27A. This 1000-foot spool is UL approved.
Package600
Voltage600V
Voltage Rating600V
Current Rating27A
Quick Jump:
Technical Specifications
Alpha Wire 6717WH001 technical specifications.
General
Approvals
UL
Package/Case
600
Color
White
Conductor Material
Copper
Current Rating
27A
Insulation Diameter
0.096inch
Insulation Material
MPPE
Insulation Thickness
0.011inch
Jacket Material
Polyhenilether
Length
1000foot
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
External
Number of Conductors
1
Number of Strands
41
Outside Diameter
2.44mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
Series
Eco Wire™
Stranding
41 x 30
Voltage
600V
Voltage Rating
600V
Voltage Rating (AC)
600V
DC Rated Voltage
600V
Weight
16lb
Wire/Cable Gauge
14AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6717WH001 Datasheet
Download the complete datasheet for Alpha Wire 6717WH001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
