ALPHA WIRE

6718VI005

Datasheet

12AWG Hook-Up Wire, 600V, 105°C, 65/30 Stranded Copper, Violet, 100ft

Alpha Wire

6718VI005

Name: 6718VI005 Alpha Wire
Brand: Alpha Wire
SKU: 6718VI005

12AWG Hook-Up Wire, 600V, 105°C, 65/30 Stranded Copper, Violet, 100ft

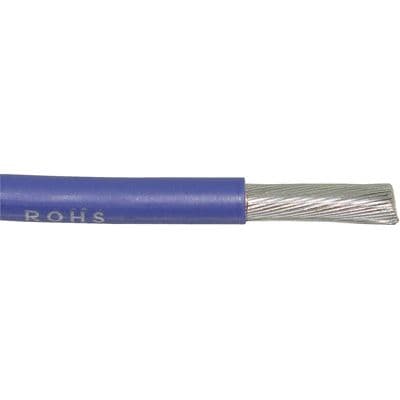

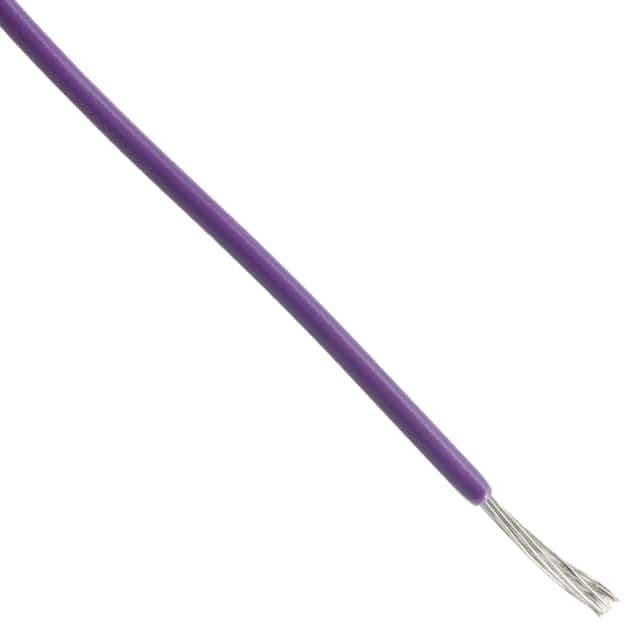

Violet hook-up wire, 12AWG, featuring a 65-strand copper conductor with a 30 AWG stranding configuration. This wire boasts a 600V voltage rating, a 45A current rating, and operates within a temperature range of -40°C to 105°C. Insulated with polyphenylene and jacketed with MPPE, it offers an insulation diameter of 0.117 inches and an outside diameter of 2.97mm. Supplied on a 100-foot spool, this RoHS compliant product is UL approved.

Package100

Voltage600V

Voltage Rating600V

Current Rating45A

Quick Jump:

Technical Specifications

Alpha Wire 6718VI005 technical specifications.

General

Approvals	UL
Package/Case	100
Color	Violet
Conductor Material	Copper
Current Rating	45A
Insulation Diameter	0.117inch
Insulation Material	Polyphenylene
Insulation Thickness	0.012inch
Jacket Material	MPPE
Length	100foot
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Number of Strands	65
Outside Diameter	2.97mm
Package Quantity	1
Packaging	Spool
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	EcoWire® 6718
Stranding	65 x 30
Voltage	600V
Voltage Rating	600V
Voltage Rating (AC)	600V
DC Rated Voltage	600V
Weight	3lb
Wire/Cable Gauge	12AWG
Wire/Cable Type	Hook-Up
