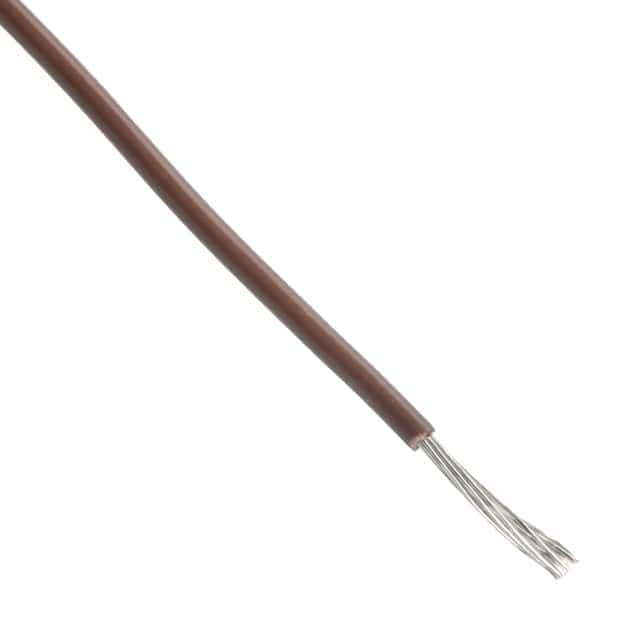

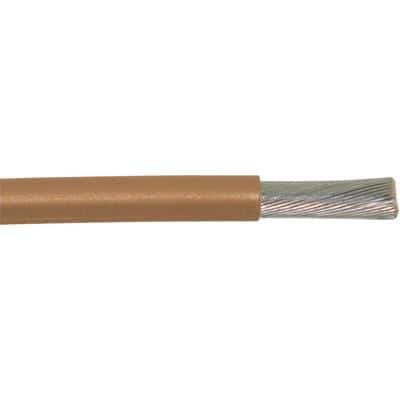

18AWG stranded hook-up wire featuring a brown polyphenylene insulation and jacket. Conductor is copper with 19 strands of 30 AWG. Offers a 300V voltage rating and operates from -40°C to 110°C. Supplied on a 100-foot spool with an outside diameter of 1.57mm. RoHS compliant.
Package100
Voltage300V
Voltage Rating300V
MountingExternal
Quick Jump:
Technical Specifications
Alpha Wire 6825BR005 technical specifications.
General
Package/Case
100
Color
Brown
Conductor Material
Copper
Insulation Diameter
0.062inch
Insulation Material
Polyphenylene
Insulation Thickness
0.008inch
Jacket Material
Polyphenylene
Length
100foot
Max Operating Temperature
110°C
Min Operating Temperature
-40°C
Mount
External
Number of Strands
19
Outside Diameter
1.57mm
Package Quantity
1
Packaging
Spool
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
EcoWire® Plus 6825
Stranding
19 x 30
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Weight
1lb
Wire/Cable Gauge
18AWG
Wire/Cable Type
Hook-Up
Compliance
RoHS
Compliant
Datasheet
Alpha Wire 6825BR005 Datasheet
Download the complete datasheet for Alpha Wire 6825BR005 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
