Package300
Voltage300V
Capacitance56pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Alpha Wire 75021BK002 technical specifications.
General
| Capacitance | 56pF |
| Package/Case | 300 |
| Color | Black |
| Conductor Material | Copper |
| Insulation Material | TPE |
| Jacket Material | TPE |
| Length | 500foot |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -50°C |
| Mount | Cable |
| Number of Pairs | 2 |
| Number of Strands | 7 |
| Outside Diameter | 7.87mm |
| Packaging | Spool |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage | 300V |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Weight | 17.03lb |
| Wire/Cable Gauge | 24AWG |
| Wire/Cable Type | Multi-Pair |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 75021BK002 Datasheet
Download the complete datasheet for Alpha Wire 75021BK002 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

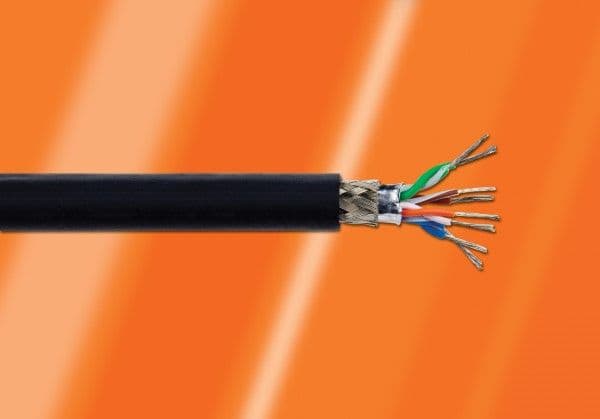

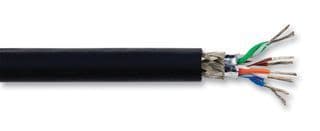

Product Images
