Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire 86107CY technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | 5°C |
| Mount | Cable |
| Number of Conductors | 7 |
| Number of Cores | 7 |
| Outside Diameter | 6.02mm |
| Reach SVHC Compliant | No |
| Voltage Rating | 300V |
| Voltage Rating (AC) | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 26AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire 86107CY Datasheet
Download the complete datasheet for Alpha Wire 86107CY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

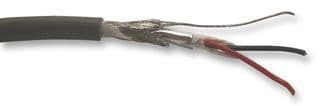

Product Images
