Voltage Rating300V
MountingCable
Quick Jump:
Technical Specifications
Alpha Wire B957084 technical specifications.
General
| Color | Grey |
| Conductor Material | Copper |
| Jacket Material | PVC |
| Mount | Cable |
| Number of Conductors | 8 |
| Number of Cores | 8 |
| Outside Diameter | 10.13mm |
| Reach SVHC Compliant | No |
| Voltage Rating | 300V |
| DC Rated Voltage | 300V |
| Wire/Cable Gauge | 16AWG |
Compliance
| RoHS | Compliant |
Datasheet
Alpha Wire B957084 Datasheet
Download the complete datasheet for Alpha Wire B957084 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

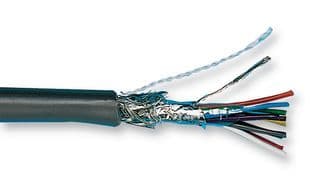

Product Images
