8-circuit, 8-position barrier strip terminal block featuring screw termination and a 3.81mm pitch. This green, polyamide body component offers a 300V voltage rating and an 8A current rating, supporting wire gauges from 16AWG to 28AWG. Approvals include UL, CSA, and VDE. Designed for free-hanging mounting, it is lead-free and packaged in bulk.
Package300
Voltage300V
Current8A
Voltage Rating125V
Quick Jump:
Technical Specifications
Altech 36.308 technical specifications.
General
Approvals
UL, CSA, VDE
Body Material
Polyamide
Package/Case
300
Color
Green
Current
8A
Current Rating
8A
Lead Free
Lead Free
Length
31.27mm
Max Current Rating
8A
Mount
Free Hanging
Number of Circuits
8
Number of Contacts
8
Number of Levels
1
Number of Poles
8
Number of Positions
8
Number of Positions Per Level
8
Package Quantity
30
Packaging
Bulk
Pitch
3.81mm
Termination
Screw
Voltage
300V
Voltage Rating
125V
Wire Gauge (Max)
28AWG
Wire Gauge (Min)
16AWG
Compliance
RoHS
Not Compliant
Datasheet
Altech 36.308 Datasheet
Download the complete datasheet for Altech 36.308 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

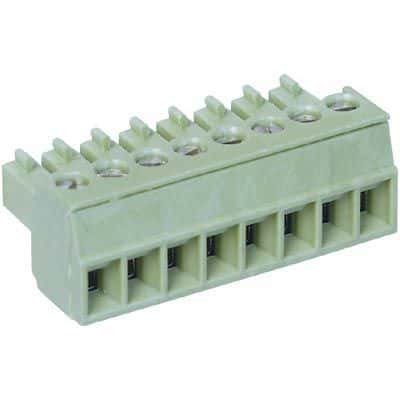

Product Images
