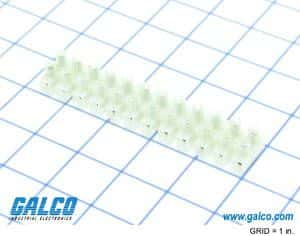

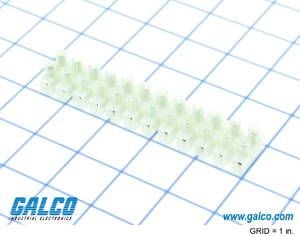

12-pole, 2-row barrier strip terminal block featuring 24 wire entries and 10mm pitch. Rated for 30A and 300V, this white terminal block utilizes screw termination for wire gauges from 10AWG to 22AWG. Constructed with Nylon insulation, it offers a maximum operating temperature of 125°C and a flammability rating of UL94 V-0. Designed for panel or chassis mounting, it measures 117mm in length, 21.8mm in width, and 15.5mm in height. Approvals include UL, CSA, and VDE.
Voltage Rating300V
Current Rating30A
MountingPanel, Chassis
Quick Jump:
Technical Specifications
Altech 40.212 technical specifications.
General
Approvals
UL, CSA, VDE
Color
White
Current Rating
30A
Flammability Rating
UL94 V-0
Height
15.5mm
Insulation Material
Nylon
Lead/Base Style
Flat
Length
117mm
Max Operating Temperature
125°C
Min Operating Temperature
-30°C
Mount
Panel, Chassis
Number of Circuits
12
Number of Poles
12
Number of Positions
12
Number of Rows
2
Number of Wire Entries
24
Package Quantity
50
Packaging
Bulk
Pitch
10mm
Series
EUROSTRIPS® ATS
Termination
Screw
Voltage Rating
300V
Width
21.8mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Not Compliant
Datasheet
Altech 40.212 Datasheet
Download the complete datasheet for Altech 40.212 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
