16A, 600V Flexible Flat Cable (FFC) / Flexible Printed Circuit (FPC) ZIF connector featuring a 2-position, 1-level design with screw termination. This insulated component accepts 1/4 in. x 1 in. or 1/4 in. x 1-1/4 in. fuses and supports wire gauges from 10AWG to 22AWG. Constructed from grey or black polyamide insulation, it offers a 12A current rating and mounts via screw. Approvals include cULus.
Package600
Voltage600V
Current16A
Voltage Rating600V
Quick Jump:
Technical Specifications
Altech CAFL4U(L)/24 technical specifications.
General
Approvals
cULus
Package/Case
600
Color
Grey, Black
Current
16A
Current Rating
12A
Fuse Size
1/4 in. x 1 in./1/4 in. x 1-1/4 in.
Height
50mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
70mm
Material
Polyamide
Mount
Screw
Number of Levels
1
Number of Positions
2
Packaging
Bulk
Terminal Width
9mm
Termination
Screw
Voltage
600V
Voltage Rating
600V
DC Rated Voltage
600V
Width
9mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
10AWG
Wire/Cable Gauge
12AWG
Compliance
RoHS
Not Compliant
Datasheet
Altech CAFL4U(L)/24 Datasheet
Download the complete datasheet for Altech CAFL4U(L)/24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

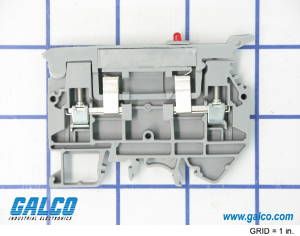

Product Images
