DIN Rail mountable terminal block for flexible flat cable (FFC) and flexible printed circuit (FPC) applications. Features ZIF (Zero Insertion Force) and LIF (Low Insertion Force) technology with 2 positions and 1 level. Rated for 10A current and 600V voltage, accepting wire gauges from 10 to 22AWG. The grey, nylon insulated housing ensures durability, with screw termination for secure connections. Designed for 5x20mm and 5x25mm fuses.
Voltage600V
Current10A
MountingDIN Rail
Quick Jump:
Technical Specifications
Altech CF4U technical specifications.
General
Color
Grey
Current
10A
Insulation Material
Nylon
Lead Free
Lead Free
Mount
DIN Rail
Number of Levels
1
Number of Positions
2
Package Quantity
100
Terminal Width
8mm
Termination
Screw
Voltage
600V
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
10AWG
Compliance
RoHS
Compliant
Datasheet
Altech CF4U Datasheet
Download the complete datasheet for Altech CF4U to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

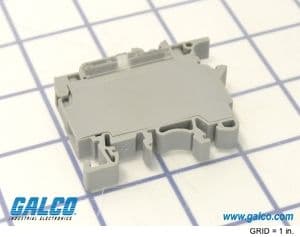

Product Images
