Insulated ferrules for wire termination, featuring a 22-24AWG wire gauge capacity. Constructed from copper with tin plating for reliable conductivity. These straight orientation terminals measure 12.5mm in length with an 8mm pin length and an 800um diameter. The plastic insulation is colored turquoise for clear identification.
Quick Jump:
Technical Specifications
American Electrical 1181034 technical specifications.
General
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Diameter
800um
Insulation
Insulated
Insulation Material
Plastic
Lead Free
Lead Free
Length
12.5mm
Material
Copper
Orientation
Straight
Package Quantity
500
Pin Length
8mm
RoHS Compliant
No
Wire/Cable Gauge
24AWG
Compliance
RoHS
Not Compliant
Datasheet
American Electrical 1181034 Datasheet
Download the complete datasheet for American Electrical 1181034 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

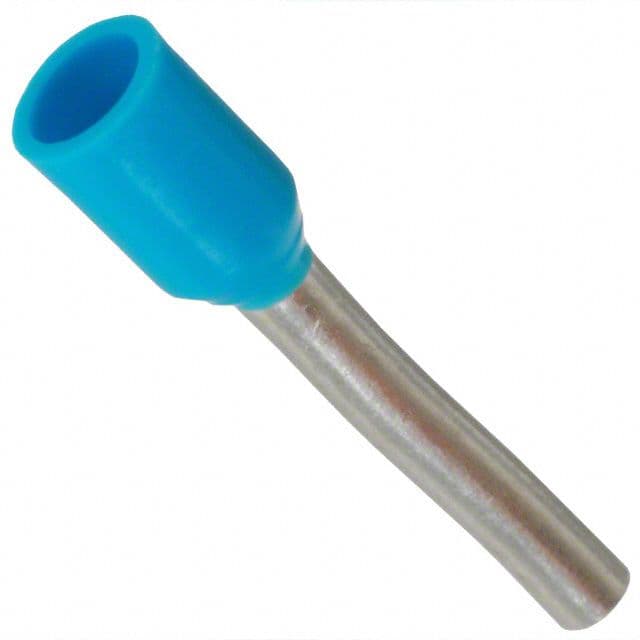

Product Images
