RF coaxial connector, TNC series, female, straight orientation, 50 Ohm impedance, operating from 0Hz to 11GHz. Features a brass body with nickel plating, copper center contact with gold plating, and PTFE dielectric. Rated for 500V, with a maximum operating temperature of 165°C and a mating cycle of 500. Designed for panel or bulkhead mounting with a solder cup termination.
Frequency11GHz
Voltage Rating500V
MountingPanel, Flanges, Bulkhead
Quick Jump:
Technical Specifications
Amphenol 031-2300 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
17.5mm
Dielectric Material
PTFE
Frequency
11GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Insertion Loss
0.18dB
Length
17.5mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Panel, Flanges, Bulkhead
Number of Ports
1
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
500V
Compliance
RoHS
Compliant
Datasheet
Amphenol 031-2300 Datasheet
Download the complete datasheet for Amphenol 031-2300 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

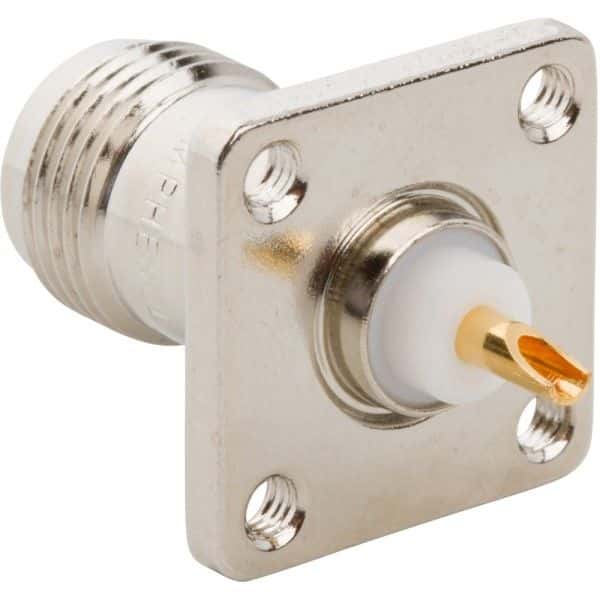

Product Images
