This 500V RF connector features a zinc alloy body with tin plating and gold center contact plating. It has a maximum operating temperature range of -65°C to 165°C and can withstand 1GHz frequency. The connector is available in bulk packaging with 100 units per package and can be mounted through a hole, panel, bulkhead, or front side nut.
Frequency1GHz
Voltage Rating500V
MountingThrough Hole, Panel, Bulkhead, Front Side Nut
Quick Jump:
Technical Specifications
Amphenol 031-6240-3 technical specifications.
General
| Body Material | ZINC ALLOY |
| Body Plating | Tin |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Dielectric Material | PBT |
| Housing Color | Silver |
| Impedance | 50R |
| Mating Cycles | 100 |
| Max Frequency | 1GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Through Hole, Panel, Bulkhead, Front Side Nut |
| Number of Ports | 1 |
| Package Quantity | 100 |
| Packaging | Bulk |
| Termination | Solder |
| Voltage Rating | 500V |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 031-6240-3 Datasheet
Download the complete datasheet for Amphenol 031-6240-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

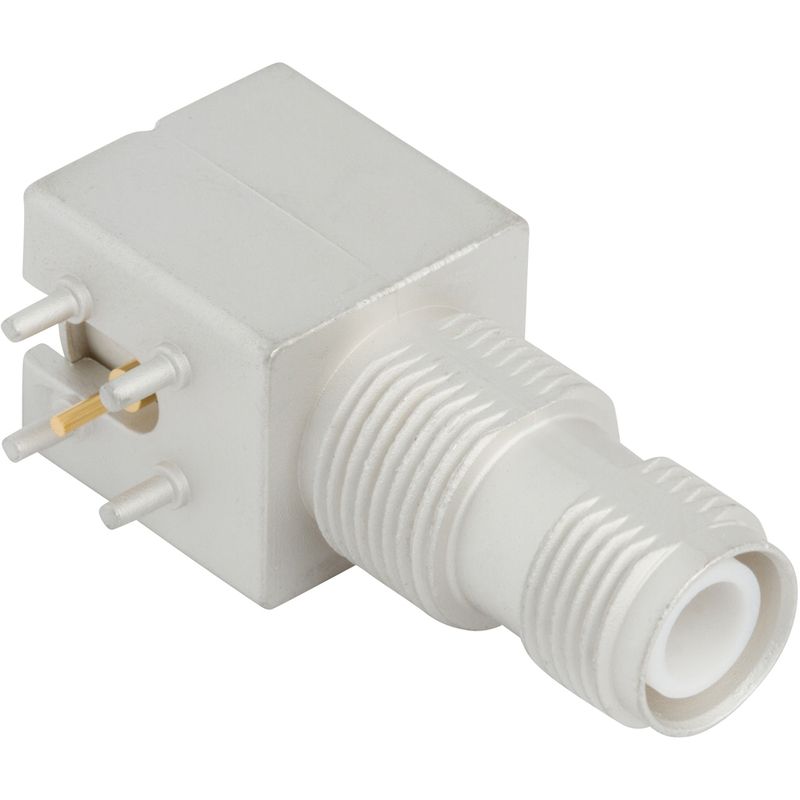

Product Images
