Technical Specifications
Amphenol 082-6096-RFX technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 11GHz |
| Gender | Female |
| Housing Color | Silver |
| Impedance | 50R |
| Length | 1.051inch |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Panel, Bulkhead, Front Side Nut |
| Operating Frequency | 0 to 11 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Voltage Rating | 1.5kV |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 082-6096-RFX Datasheet
Download the complete datasheet for Amphenol 082-6096-RFX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

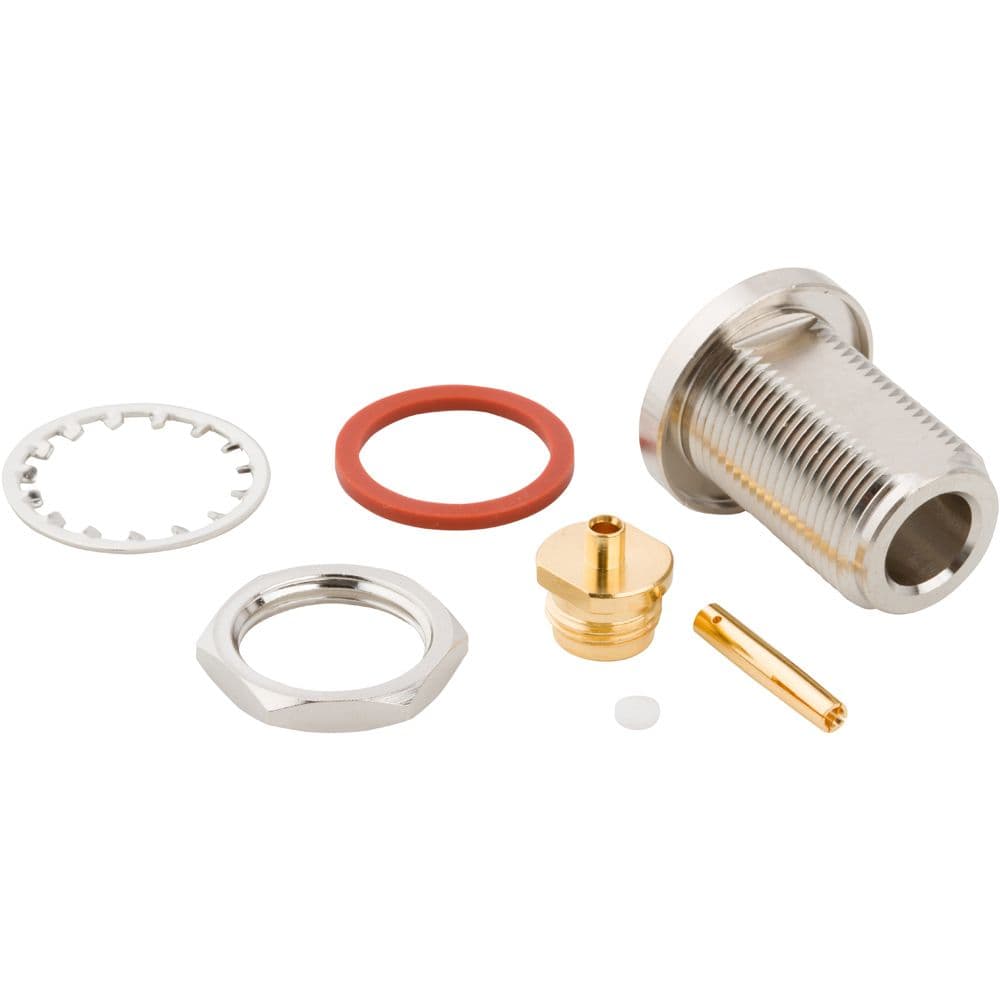

Product Images
