Shielded, right-angle RJ45 connector featuring 32 positions and 4 ports. This female connector utilizes a 2.54mm pitch with solder termination and through-hole mounting. Constructed with copper alloy contacts plated in gold, it offers a 1A current rating and a 150V AC voltage rating. The black housing is UL94 V-0 rated for flammability, operating between -40°C and 85°C.
Voltage Rating150V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 10118070-500A110LF technical specifications.
General
Color
Black
Contact Material
Copper Alloy, Copper
Contact Plating
Gold
Current Rating
1A
Depth
28.6mm
Direction
Up and Down
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Length
31.25mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
150V
Mount
Through Hole
Number of Contacts
32
Number of Ports
4
Number of Positions
32
Number of Positions Loaded
32
Number of Rows
2
Orientation
Right Angle
Package Quantity
35
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
10118070
Shielding
Shielded
Termination
Solder
Voltage Rating
150V
Compliance
RoHS
Compliant
Datasheet
Amphenol 10118070-500A110LF Datasheet
Download the complete datasheet for Amphenol 10118070-500A110LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

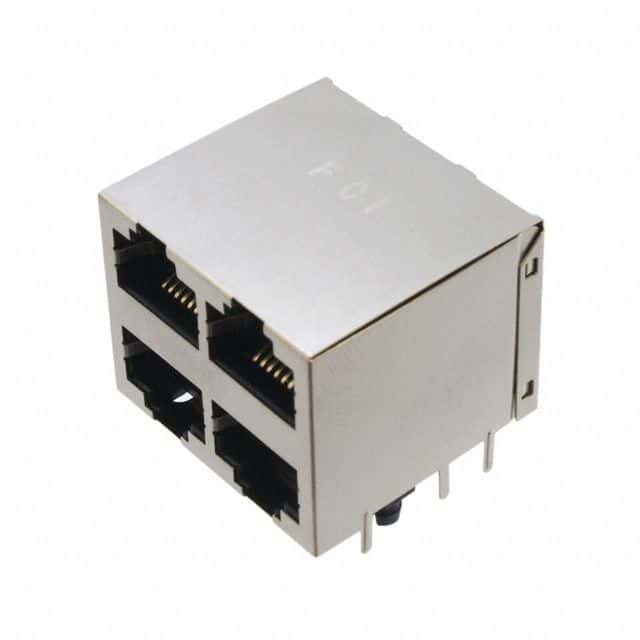

Product Images
