RF TNC connector, male, straight orientation, featuring a 50 Ohm impedance and a maximum frequency of 11 GHz. This panel and cable mount connector utilizes a crimp termination with gold-plated brass and bronze contacts, and a PTFE dielectric. It offers a voltage rating of 500V, a maximum operating temperature of 165°C, and 500 mating cycles. The brass body is nickel-plated for durability.
Frequency11GHz
Package100
Voltage Rating500V
MountingBulkhead, Panel, Front Side Nut
Quick Jump:
Technical Specifications
Amphenol 122192RP technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
100
Center Contact Plating
Gold
Contact Material
Brass, Bronze
Contact Plating
Gold
Depth
17.5mm
Dielectric Material
PTFE
Frequency
11GHz
Housing Color
Silver
Impedance
50R
Insertion Loss
0.18dB
Length
28.8mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-40°C
Mount
Bulkhead, Panel, Front Side Nut
Number of Ports
1
Operating Frequency
0 to 4 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Weight
0.591192oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 122192RP Datasheet
Download the complete datasheet for Amphenol 122192RP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

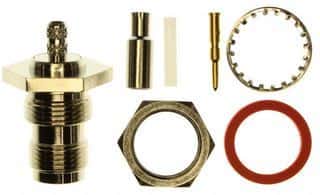

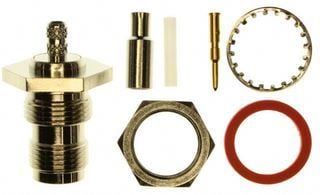

Product Images
