Straight RF connector adapter featuring TNC-TNC plug-to-plug configuration. Constructed with a brass body and nickel plating, it offers 50 Ohm impedance and a maximum operating frequency of 11 GHz. The center contact is gold-plated brass, with gold and silver plating on the contact. Dielectric material is Polyoxymethylene, and the adapter supports free hanging and bulkhead mounting.
Frequency11GHz
Resistance50R
MountingFree Hanging, Bulkhead
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 122350 technical specifications.
General
| Adapter Style | Straight |
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold, Silver |
| Dielectric Material | Polyoxymethylene |
| Gender Type A | Male |
| Gender Type B | Male |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 33.7mm |
| Max Frequency | 11GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Bulkhead |
| Operating Frequency | 0 to 11 GHz |
| Orientation | Straight |
| Packaging | Bulk |
| Plating | Nickel |
| Polarity | Normal |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 50R |
| RoHS Compliant | No |
| Weight | 0.75839oz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Amphenol 122350 Datasheet
Download the complete datasheet for Amphenol 122350 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

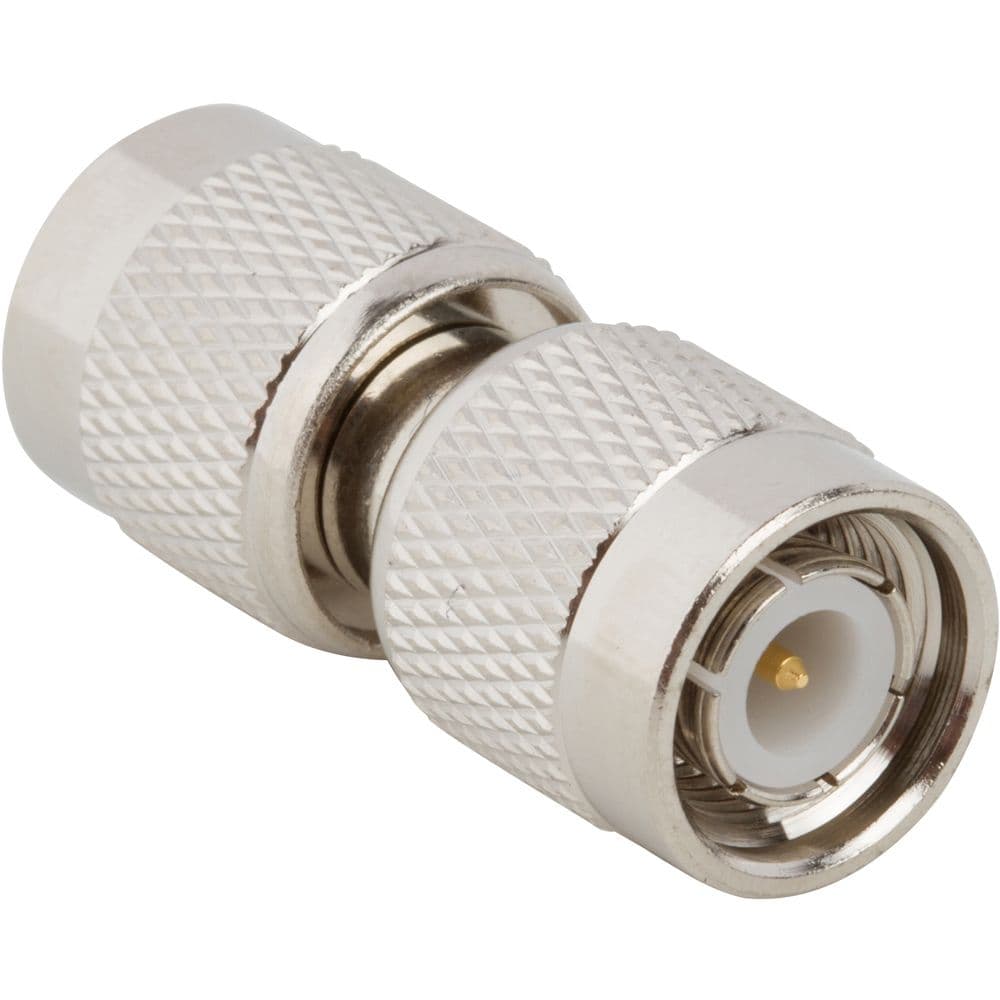

Product Images
