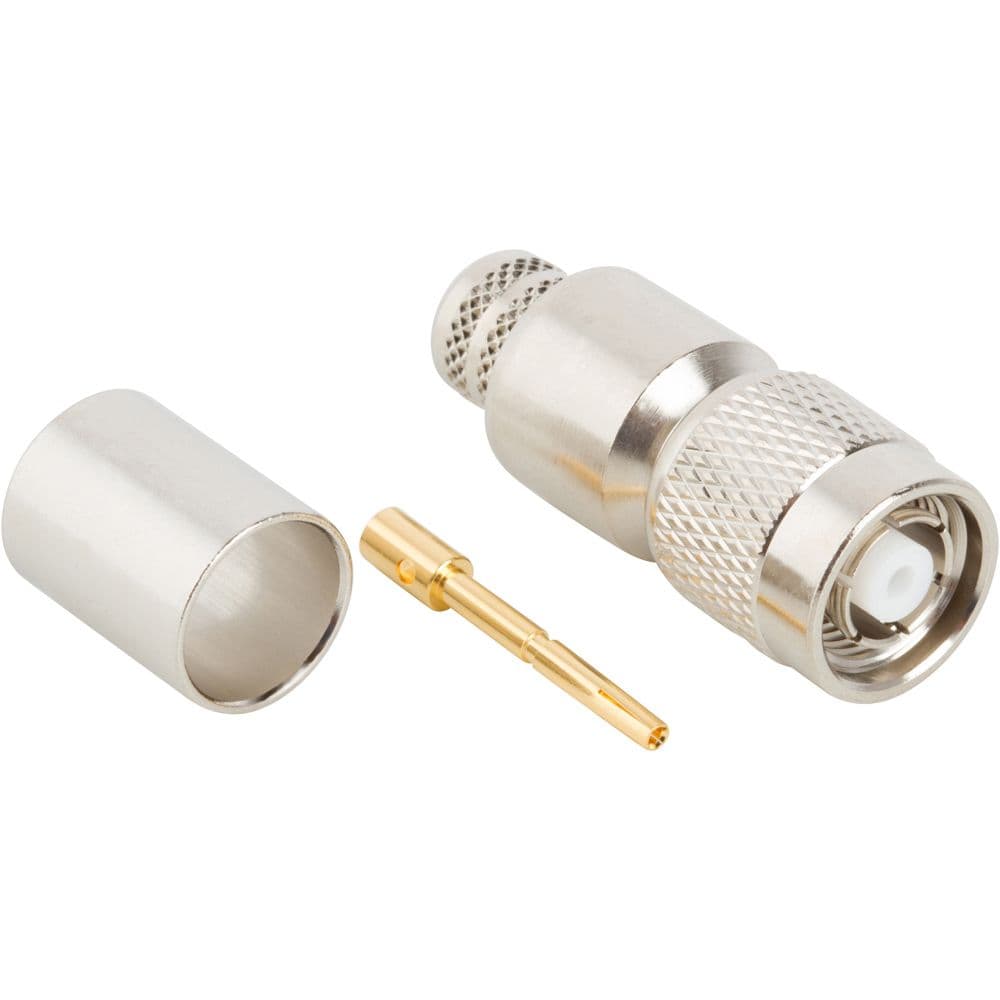

RF TNC plug connector for cable mounting, featuring a straight, straight orientation and a crimp termination. This connector operates from 0 to 11 GHz with a 50 Ohm impedance and a 500 mating cycle lifespan. Constructed with a brass body plated in nickel and a bronze center contact plated in gold, it utilizes PTFE dielectric material. Rated for 500V and a temperature range of -65°C to 165°C, this RoHS compliant component is designed for reliable RF signal transmission.
Frequency11GHz
Voltage Rating500V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 122393RP technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
11GHz
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
36.5mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Operating Frequency
0 to 11 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Weight
0.859979oz
Compliance
RoHS
Compliant
