RF TNC connector, male, cable mount, straight orientation, featuring a brass body with nickel plating and gold-plated brass center contacts. This connector operates at frequencies from 0 to 11 GHz with a 50 Ohm impedance and a 500 mating cycle lifespan. It has a 500V voltage rating and a temperature range of -40°C to 85°C. The dielectric is polyoxymethylene, and the connector is RoHS compliant.
Frequency11GHz
Voltage Rating500V
MountingFree Hanging, Cable, Bulkhead
Quick Jump:
Technical Specifications
Amphenol 122408 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
Polyoxymethylene
Frequency
11GHz
Gender
Female
Housing Color
Silver
Impedance
50R
Lead Free
Lead Free
Length
25mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Free Hanging, Cable, Bulkhead
Operating Frequency
0 to 11 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
500V
Weight
0.493835oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 122408 Datasheet
Download the complete datasheet for Amphenol 122408 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

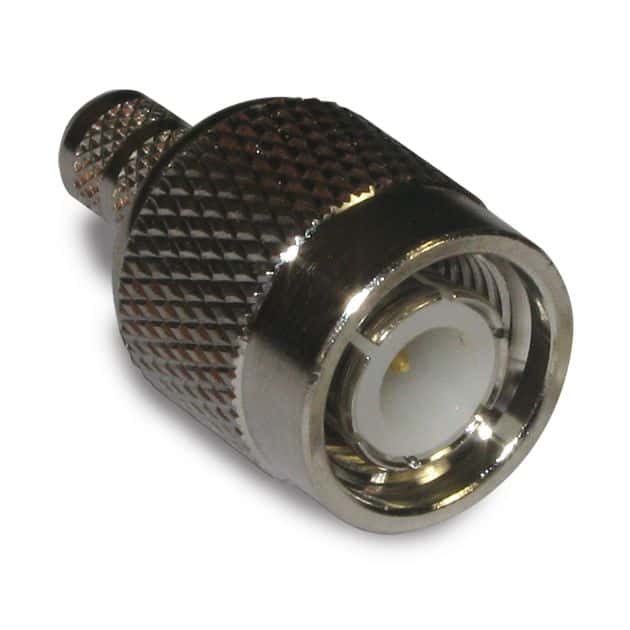

Product Images
