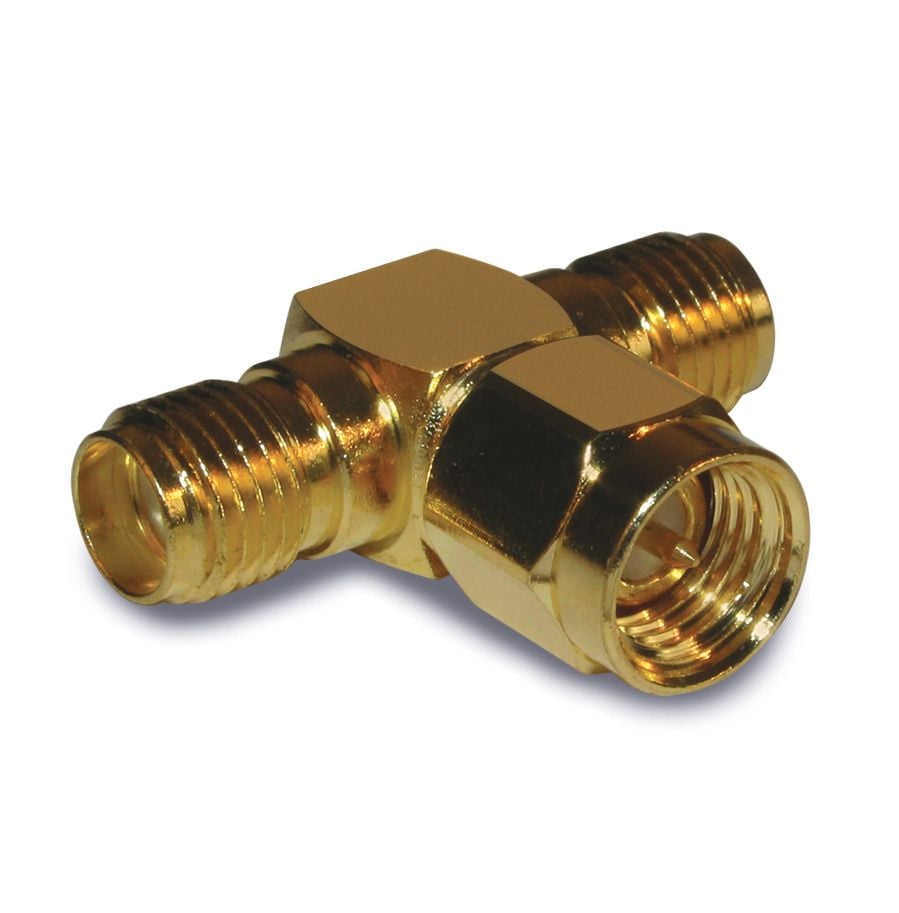

Tee-style RF connector adapter featuring SMA female-male-female interfaces. This brass adapter with gold plating offers 50 Ohm impedance and operates from DC to 18 GHz, with a maximum frequency of 12.4 GHz. Constructed with a PTFE dielectric and gold-plated copper/brass contacts, it supports a temperature range of -65°C to 165°C. The free-hanging, bulk-packaged component is RoHS compliant.
Frequency12.4GHz
PackageSMA
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 132217 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper, Brass
Contact Plating
Gold
Dielectric Material
PTFE
Gender Type A
Female
Gender Type B
Male
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
23.2mm
Max Frequency
12.4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Operating Frequency
0 to 18 GHz
Orientation
Tee Style
Packaging
Bulk
Plating
Gold
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Weight
0.236336oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 132217 Datasheet
Download the complete datasheet for Amphenol 132217 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
