SMA connector for RF and coaxial applications, featuring a straight, cable mount configuration with solder termination. This component operates from 0Hz to 12.4GHz with a 50 Ohm impedance. Constructed with a brass body plated in gold, it utilizes a copper center contact also plated in gold, and a PTFE dielectric. Rated for 500 mating cycles and an operating temperature range of -65°C to 165°C, this RoHS compliant connector offers reliable performance.
Frequency12.4GHz
PackageSMA
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 132236 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
8mm
Dielectric Material
PTFE
Frequency
12.4GHz
Housing Color
Gold
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
19.7mm
Mating Cycles
500
Max Frequency
12.4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 12.4 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Weight
0.138979oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 132236 Datasheet
Download the complete datasheet for Amphenol 132236 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

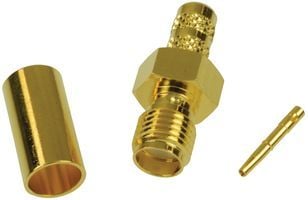

Product Images
