RF SMA Receptacle, Female, Board Mount Connector. Features a 50 Ohm impedance and operates from 0 to 18 GHz with a maximum frequency of 18 GHz. Constructed with a brass body plated in gold, and a copper center contact also plated in gold. Dielectric and insulation material is PTFE. Designed for PCB mounting with a solder termination and straight orientation. Rated for 500 mating cycles and operates between -65°C and 165°C.
Frequency18GHz
PackageSMA
MountingEdge, Board, PCB
Quick Jump:
Technical Specifications
Amphenol 132255 technical specifications.
General
Board Thickness
0.062inch
Body Material
Brass
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Depth
7.92mm
Dielectric Material
PTFE
Frequency
18GHz
Housing Color
Gold
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
9.52mm
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Edge, Board, PCB
Number of Ports
1
Operating Frequency
0 to 18 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
Weight
0.059966oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 132255 Datasheet
Download the complete datasheet for Amphenol 132255 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

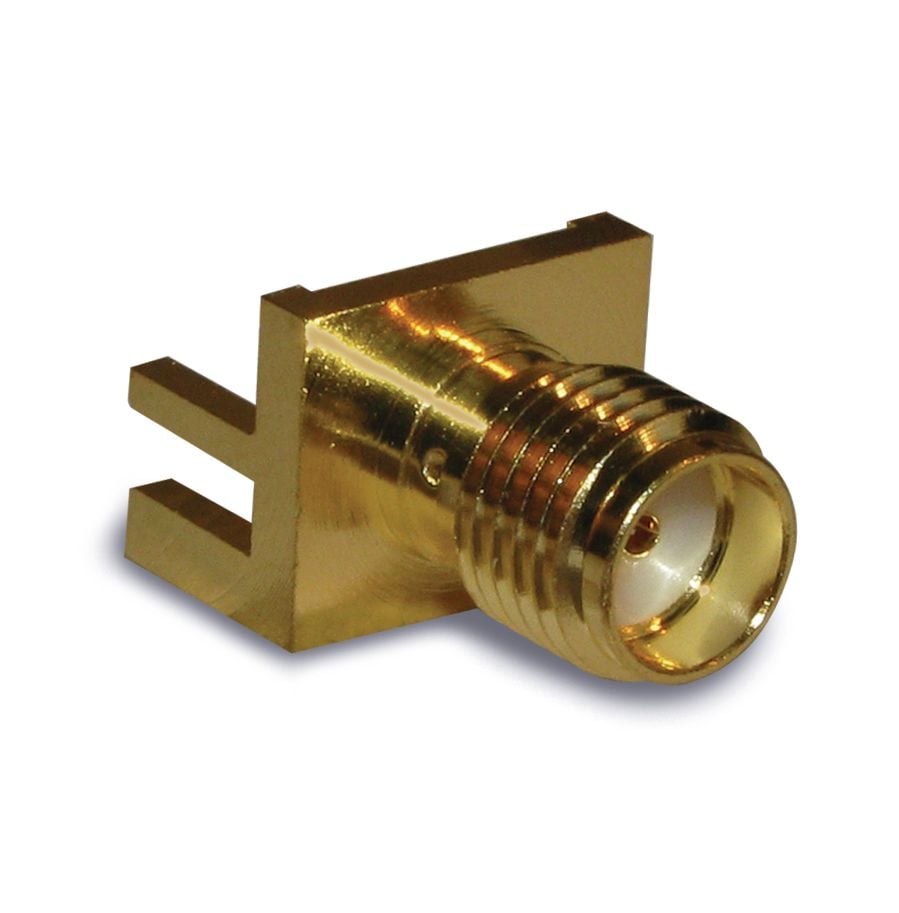

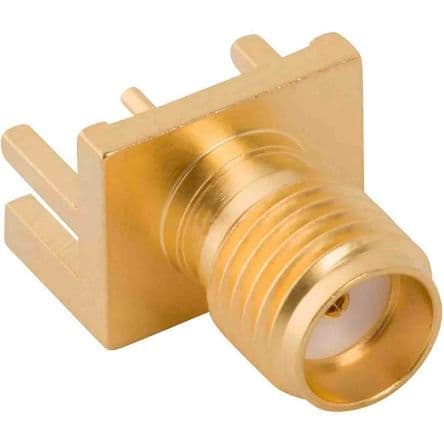

Product Images
