20-way flat ribbon cable, 28AWG, featuring a 1.27mm pitch and 105 Ohm characteristic impedance. Constructed with copper conductors and PVC insulation/jacket, this unshielded cable offers a 1A current rating and operates between -20°C and 80°C. UL and CSA approved, it is supplied in bulk packaging.
Package100
Voltage300V
Capacitance3.96pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Amphenol 135-2801-020 technical specifications.
General
Approvals
UL, CSA
Cable Pitch
1.27mm
Capacitance
3.96pF
Package/Case
100
Characteristic Impedance
105R
Color
Multiple
Conductor Material
Copper
Current Rating
1A
Depth
25.53mm
Inductance
590nH
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Current Rating
1A
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
20
Number of Cores
20
Number of Strands
7
Number of Ways
20
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Series
3C®
Shielding
Unshielded
Stranding
7 x 36
Thickness
1.07mm
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Width
0.88mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Flat Flex, Ribbon
Compliance
RoHS
Not CompliantNo
Datasheet
Amphenol 135-2801-020 Datasheet
Download the complete datasheet for Amphenol 135-2801-020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

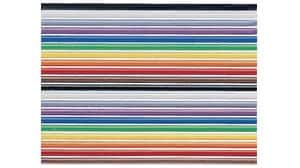

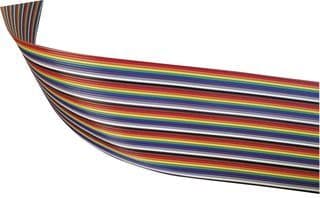

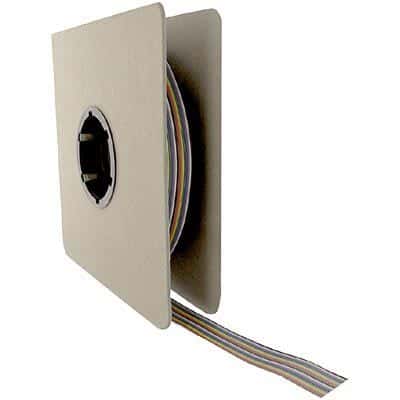

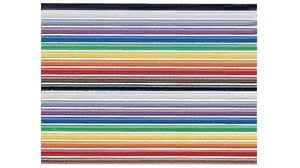

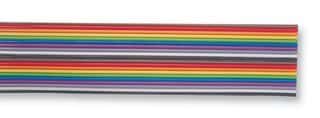

Product Images
