37-conductor flat ribbon cable, 28AWG, featuring a 1.27mm pitch and 300V voltage rating. Constructed with copper conductors and PVC insulation/jacket, this unshielded cable operates between -40°C and 80°C with a 1A current rating. Approvals include UL and CSA, with a characteristic impedance of 105 Ohms and capacitance of 42.7pF. Available on a 100-foot spool.
Package100
Voltage300V
Capacitance42.7pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Amphenol 135-2801-037 technical specifications.
General
Approvals
UL, CSA
Cable Pitch
1.27mm
Capacitance
42.7pF
Package/Case
100
Characteristic Impedance
105R
Color
Multiple
Conductor Material
Copper
Current Rating
1A
Depth
47.12mm
Insulation Material
PVC
Jacket Material
PVC
Length
100foot
Max Current Rating
1A
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Mount
Cable
Number of Conductors
37
Number of Cores
37
Number of Strands
7
Number of Ways
37
Package Quantity
100
Packaging
Spool
Pitch
1.27mm
Reach SVHC Compliant
No
RoHS Compliant
No
Series
3C®
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
Voltage Rating (AC)
300V
DC Rated Voltage
300V
Width
47.12mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Flat, Ribbon, Flat Flex
Compliance
RoHS
Not Compliant
Datasheet
Amphenol 135-2801-037 Datasheet
Download the complete datasheet for Amphenol 135-2801-037 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

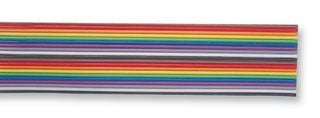

Product Images
