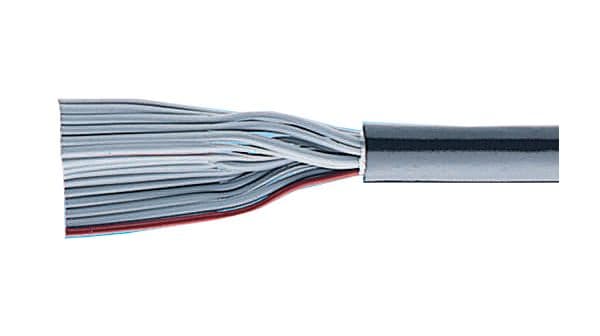

34-conductor, 28AWG flat flex cable featuring a 1.27mm pitch and 10.16mm overall diameter. Constructed with copper conductors and PVC insulation, this unshielded cable offers a 300V voltage rating and a 1.3A current rating. It operates within a temperature range of -20°C to 105°C and has a characteristic impedance of 95 ohms. Available in black, grey, and red with a red first conductor mark, this cable is supplied on a 100-foot spool.
Package100
Voltage300V
Capacitance62.32pF
Voltage Rating300V
Quick Jump:
Technical Specifications
Amphenol 159-2801-234 technical specifications.
General
Cable Pitch
1.27mm
Capacitance
62.32pF
Package/Case
100
Characteristic Impedance
95R
Color
Black, Grey, Red
Conductor Material
Copper
Current Rating
1.3A
First Conductor Mark
Red
Impedance
95R
Insulation Material
PVC
Jacket Material
Polyvinyl
Length
100foot
Max Current Rating
1.3A
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Mount
Cable
Number of Conductors
34
Number of Cores
34
Number of Strands
7
Number of Ways
34
Package Quantity
100
Packaging
Spool
Pitch
1.27mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Series
Round N Flat®
Shielding
Unshielded
Stranding
7 x 36
Voltage
300V
Voltage Rating
300V
DC Rated Voltage
300V
Width
41.91mm
Wire/Cable Diameter
10.16mm
Wire/Cable Gauge
28AWG
Wire/Cable Type
Round, Flat, Flat Flex
Compliance
RoHS
Not CompliantNo
