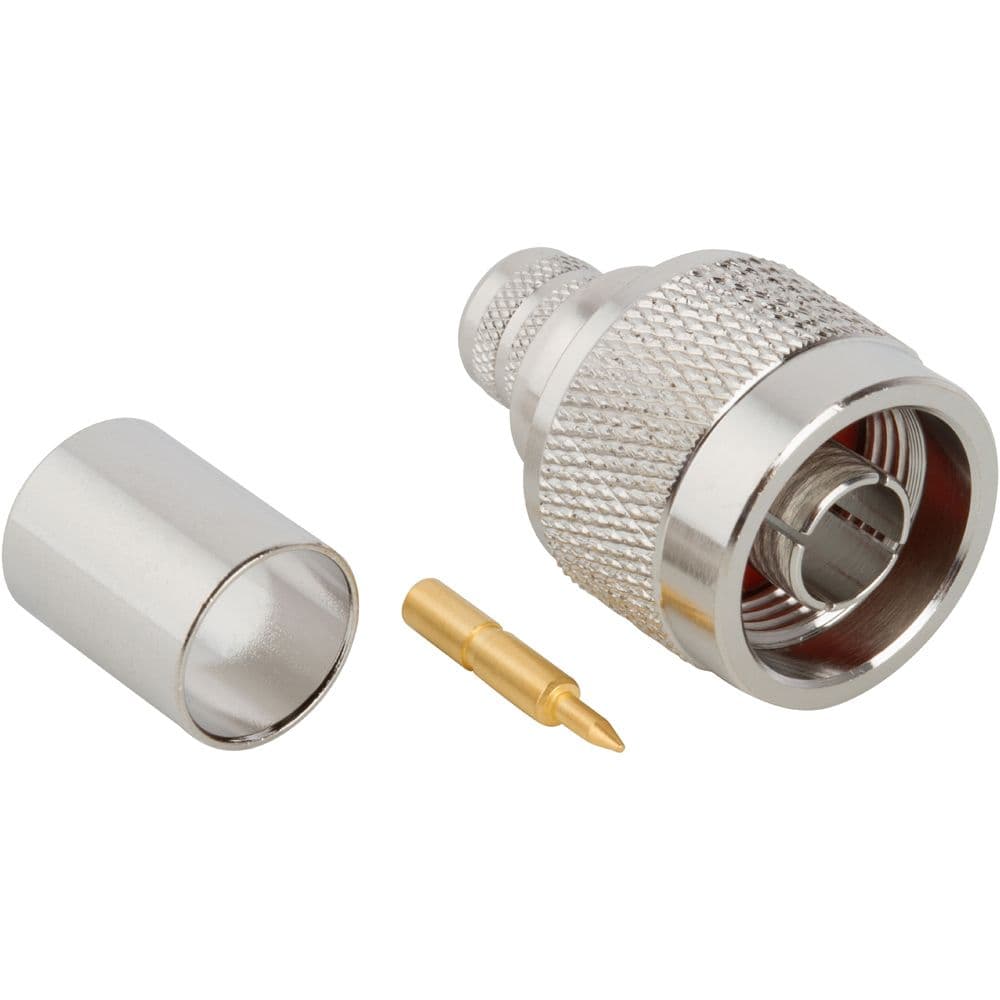

RF N Type connector, male, cable mount, straight orientation, featuring a brass body with bronze plating and gold-plated brass center contact. This coaxial connector operates from 0 to 11 GHz with a 50 Ohm impedance and a voltage rating of 1.5kV. Constructed with a PTFE dielectric, it offers a mating cycle of 500 and a temperature range of -65°C to 165°C. Termination is achieved via crimp.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Amphenol 172166 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Bronze |
| Center Contact Plating | Gold |
| Contact Material | Brass |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Frequency | 11GHz |
| Housing Color | Silver |
| Impedance | 50R |
| Inside Diameter | 7.42mm |
| Insulation Material | Polytetrafluoroethylene |
| Lead Free | Lead Free |
| Length | 29.8mm |
| Mating Cycles | 500 |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Free Hanging, Cable |
| Operating Frequency | 0 to 11 GHz |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Termination | Crimp |
| Voltage Rating | 1.5kV |
| Weight | 1.163335oz |
| RoHS | Compliant |
