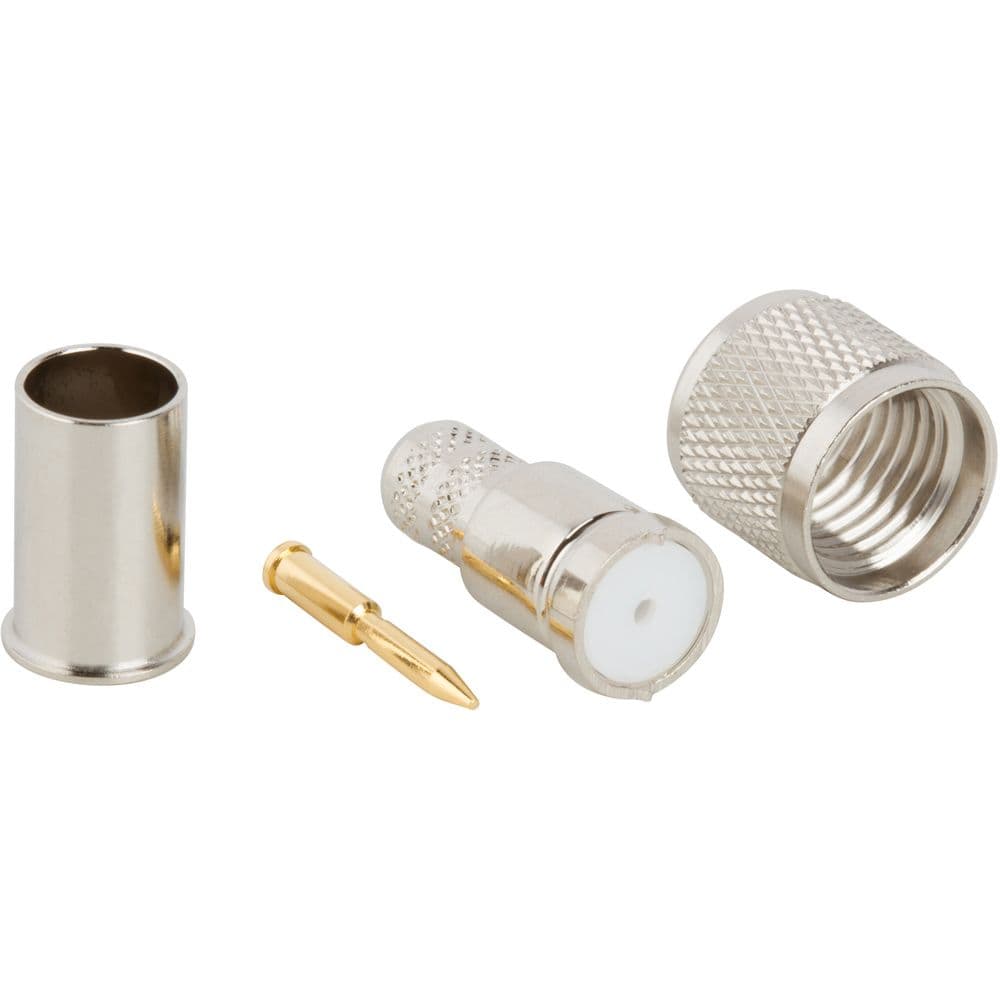

RF Mini UHF Connector, Plug, Cable Mount, Straight Orientation, 1 Contact. Features a brass body with nickel plating and gold-plated brass center contact. Operates up to 2.5GHz with 50 Ohm impedance and a 335V rating. Utilizes PTFE dielectric and offers 500 mating cycles. Suitable for temperatures from -65°C to 85°C.
Frequency2.5GHz
Voltage Rating335V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 182302 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
2.5GHz
Housing Color
Silver
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Length
17.7mm
Mating Cycles
500
Max Frequency
2.5GHz
Max Operating Temperature
85°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
335V
Weight
0.217993oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 182302 Datasheet
Download the complete datasheet for Amphenol 182302 to view detailed technical specifications.
