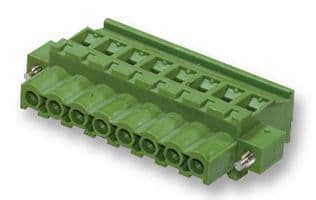

Eight-position, straight, cable mount terminal block with a 5mm pitch. Features screw termination and a maximum current rating of 12A, with a voltage rating of 300V AC. Constructed with bronze, steel, and copper alloy contacts plated in tin. Operates within a temperature range of -40°C to 115°C and supports wire gauges from 12AWG to 24AWG. Housing is green and the component is RoHS compliant.
Voltage Rating300V
Current Rating8A
MountingCable
Quick Jump:
Technical Specifications
Amphenol 20020011-G081B01LF technical specifications.
General
| Contact Material | Bronze, Steel, Copper Alloy |
| Contact Plating | Tin |
| Current Rating | 8A |
| Depth | 12.6mm |
| Housing Color | Green |
| Lead Free | Lead Free |
| Length | 49.6mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Cable |
| Number of Circuits | 8 |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 55 |
| Packaging | Bulk |
| Pitch | 5mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 02-500 |
| Termination | Screw |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 20020011-G081B01LF Datasheet
Download the complete datasheet for Amphenol 20020011-G081B01LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
