10-position, 1-level terminal block featuring 5.08mm pitch and straight orientation. Rated for 12A maximum current and 300V maximum AC voltage, this screw termination block accepts wire gauges from 12AWG to 24AWG. Constructed with bronze, steel, and copper alloy contacts plated in tin, it offers a robust operating temperature range of -40°C to 115°C. Designed for cable mounting, this green terminal block is RoHS compliant.
Voltage300V
Current12A
Voltage Rating300V
Current Rating8A
Quick Jump:
Technical Specifications
Amphenol 20020011-H101B01LF technical specifications.
General
| Color | Green |
| Contact Material | Bronze, Steel, Copper Alloy |
| Contact Plating | Tin |
| Current | 12A |
| Current Rating | 8A |
| Depth | 12.6mm |
| Housing Color | Green |
| Length | 60.4mm |
| Max Current Rating | 12A |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (AC) | 300V |
| Max Voltage Rating (AC) | 300V |
| Mount | Free Hanging, Cable |
| Number of Circuits | 10 |
| Number of Contacts | 10 |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Number of Positions Per Level | 10 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 55 |
| Packaging | Bulk |
| Pitch | 0.2inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | 02-508 |
| Termination | Screw |
| Voltage | 300V |
| Voltage Rating | 300V |
| Wire Gauge (Max) | 24AWG |
| Wire Gauge (Min) | 12AWG |
| Wire/Cable Gauge | 24AWG |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 20020011-H101B01LF Datasheet
Download the complete datasheet for Amphenol 20020011-H101B01LF to view detailed technical specifications.
No datasheet is available for this part.

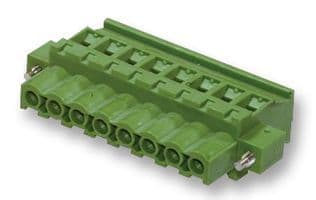

Product Images
