4-position, 1-level, ZIF/LIF connector with a 5mm pitch. Features male pins with brass and copper alloy contacts plated in tin, rated for 12A and 300V. This vertical, through-hole mounted header has a green housing and operates within a temperature range of -40°C to 115°C.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
Amphenol 20020108-G041A01LF technical specifications.
General
Color
Green
Contact Material
Brass, Copper Alloy
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
8.5mm
Gender
Male
Housing Color
Green
Length
30mm
Max Current Rating
12A
Max Operating Temperature
115°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Contacts
4
Number of Levels
1
Number of Positions
4
Number of Positions Per Level
4
Number of Rows
1
Orientation
Straight
Package Quantity
320
Packaging
Bulk
Pitch
5mm
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
06-500
Termination
Solder
Voltage
300V
Voltage Rating
300V
Compliance
RoHS
Compliant
Datasheet
Amphenol 20020108-G041A01LF Datasheet
Download the complete datasheet for Amphenol 20020108-G041A01LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

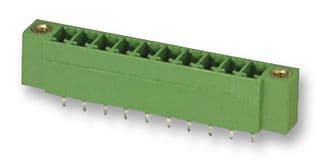

Product Images
