10-position, right-angle, through-hole terminal block header featuring male pins and a shrouded housing. This connector offers a 5mm pitch and a 12A current rating, with a maximum AC voltage rating of 300V. Constructed with copper contacts plated in tin and a green nylon housing, it operates within a temperature range of -40°C to 115°C.
Voltage300V
Current12A
Voltage Rating300V
Current Rating12A
Quick Jump:
Technical Specifications
Amphenol 20020110-G101A01LF technical specifications.
General
Color
Green
Contact Material
Copper
Contact Plating
Tin
Current
12A
Current Rating
12A
Depth
12mm
Gender
Male
Housing Color
Green
Lead Free
Lead Free
Length
52mm
Material
Nylon
Max Operating Temperature
115°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Contacts
10
Number of Levels
1
Number of Positions
10
Number of Positions Per Level
10
Number of Rows
1
Orientation
Right Angle
Package Quantity
140
Packaging
Bulk
Pitch
5mm
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
06-500
Termination
Solder
Voltage
300V
Voltage Rating
300V
Width
12mm
Compliance
RoHS
Compliant
Datasheet
Amphenol 20020110-G101A01LF Datasheet
Download the complete datasheet for Amphenol 20020110-G101A01LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

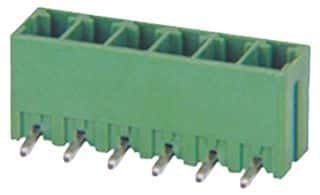

Product Images
