Straight RF connector adapter featuring SMA male to BNC female interfaces. Constructed with a brass body plated in nickel, it utilizes a bronze center contact with gold plating and a PTFE dielectric. This free-hanging adapter operates at 50 Ohm impedance, supports frequencies up to 4 GHz, and maintains a temperature range of -65°C to 165°C. The component is RoHS compliant and lead-free.
Frequency4GHz
PackageSMA
MountingFree Hanging
Quick Jump:
Technical Specifications
Amphenol 242102 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Bronze
Dielectric Material
PTFE
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
30.3mm
Max Frequency
4GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 4 Hz to GHz
Orientation
Straight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Amphenol 242102 Datasheet
Download the complete datasheet for Amphenol 242102 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

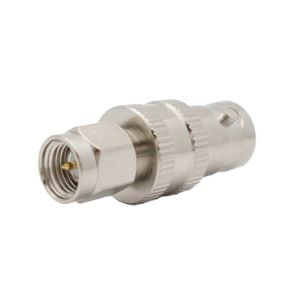

Product Images
