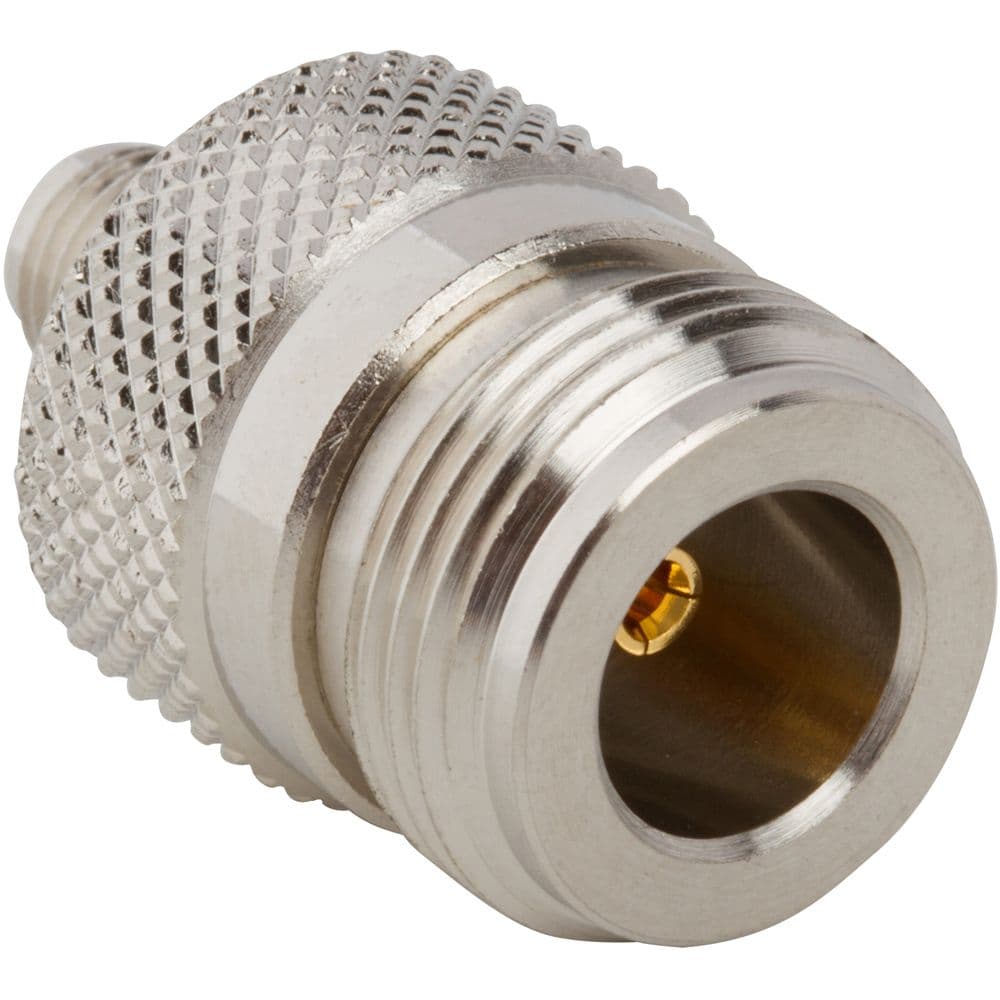

This straight RF connector adapter features female-female SMA to N-type interfaces, designed for 50 Ohm impedance and operating frequencies from 0 to 11 GHz. Constructed with a brass body plated in nickel, it utilizes gold-plated bronze and copper contacts for reliable signal transfer. The dielectric is PTFE, ensuring excellent insulation, and the adapter supports a wide operating temperature range of -65°C to 165°C. This RoHS compliant component is free hanging and suitable for bulk packaging.
Frequency11GHz
PackageSMA
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 242115 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Nickel
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Bronze, Copper
Contact Plating
Gold
Dielectric Material
PTFE
Gender
Female
Gender Type A
Female
Gender Type B
Female
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
26.9mm
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 11 GHz
Orientation
Straight
Packaging
Bulk
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Weight
0.838815oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 242115 Datasheet
Download the complete datasheet for Amphenol 242115 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
