Straight RF connector adapter featuring a 50 Ohm impedance. Constructed with a brass body plated in nickel and a PTFE dielectric, this adapter utilizes gold-plated bronze center contacts. Designed for free-hanging mounting, it supports up to 500 mating cycles and operates from 0 to 11 GHz with a maximum frequency of 11 GHz. The component offers a temperature range of -40°C to 165°C and is RoHS compliant.
Frequency11GHz
Resistance50R
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 242131 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Bronze
Contact Plating
Gold
Dielectric Material
PTFE
Gender Type A
Female
Gender Type B
Male
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
37mm
Mating Cycles
500
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-40°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 11 GHz
Orientation
Straight
Packaging
Bag
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
50R
RoHS Compliant
Yes
Weight
1.032116oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 242131 Datasheet
Download the complete datasheet for Amphenol 242131 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

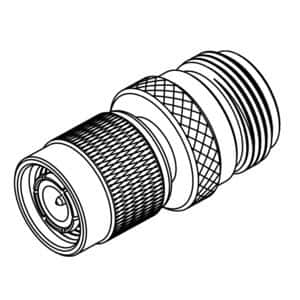

Product Images
