Straight RF connector adapter, N-TNC plug-plug configuration. Features 50 Ohm impedance, brass body with nickel plating, and gold-plated brass center contact. Dielectric is PTFE for reliable performance up to 11 GHz. Operates from -65°C to 165°C, with a length of 36mm. RoHS compliant and lead-free.
Frequency11GHz
Resistance50R
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 242133 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Dielectric Material
PTFE
Gender Type A
Male
Gender Type B
Male
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
36mm
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 11 GHz
Orientation
Straight
Packaging
Bag
Plating
Nickel
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
50R
RoHS Compliant
Yes
Weight
1.696678oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 242133 Datasheet
Download the complete datasheet for Amphenol 242133 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

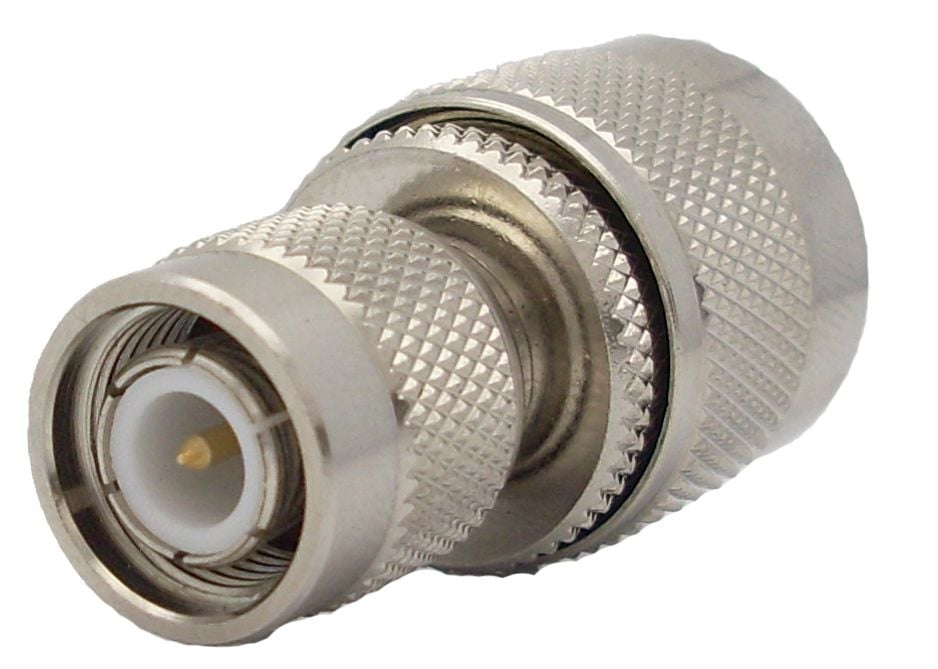

Product Images
