Straight RF connector adapter featuring a 50 Ohm impedance and a maximum operating frequency of 6 GHz. Constructed with a brass body and bronze plating, it utilizes silver-plated copper contacts and a PTFE dielectric for reliable signal transmission. This free-hanging, waterproof, and dust-tight component supports 500 mating cycles and operates within a temperature range of -55°C to 155°C.
Frequency6GHz
Resistance50R
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 242136 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Bronze
Center Contact Plating
Silver
Contact Material
Copper
Contact Plating
Silver
Depth
32mm
Dielectric Material
PTFE
Gender Type A
Male
Gender Type B
Female
Impedance
50R
Insertion Loss
0.1dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
32.4mm
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 6 GHz
Orientation
Straight
Packaging
Bag
Plating
Bronze
Polarity
Normal
Radiation Hardening
No
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
Resistance
50R
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Amphenol 242136 Datasheet
Download the complete datasheet for Amphenol 242136 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

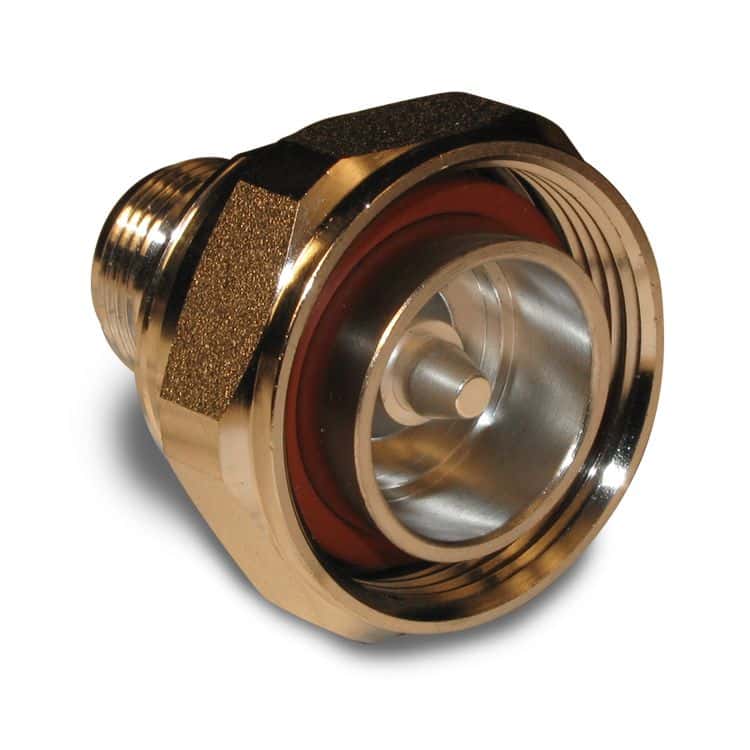

Product Images
