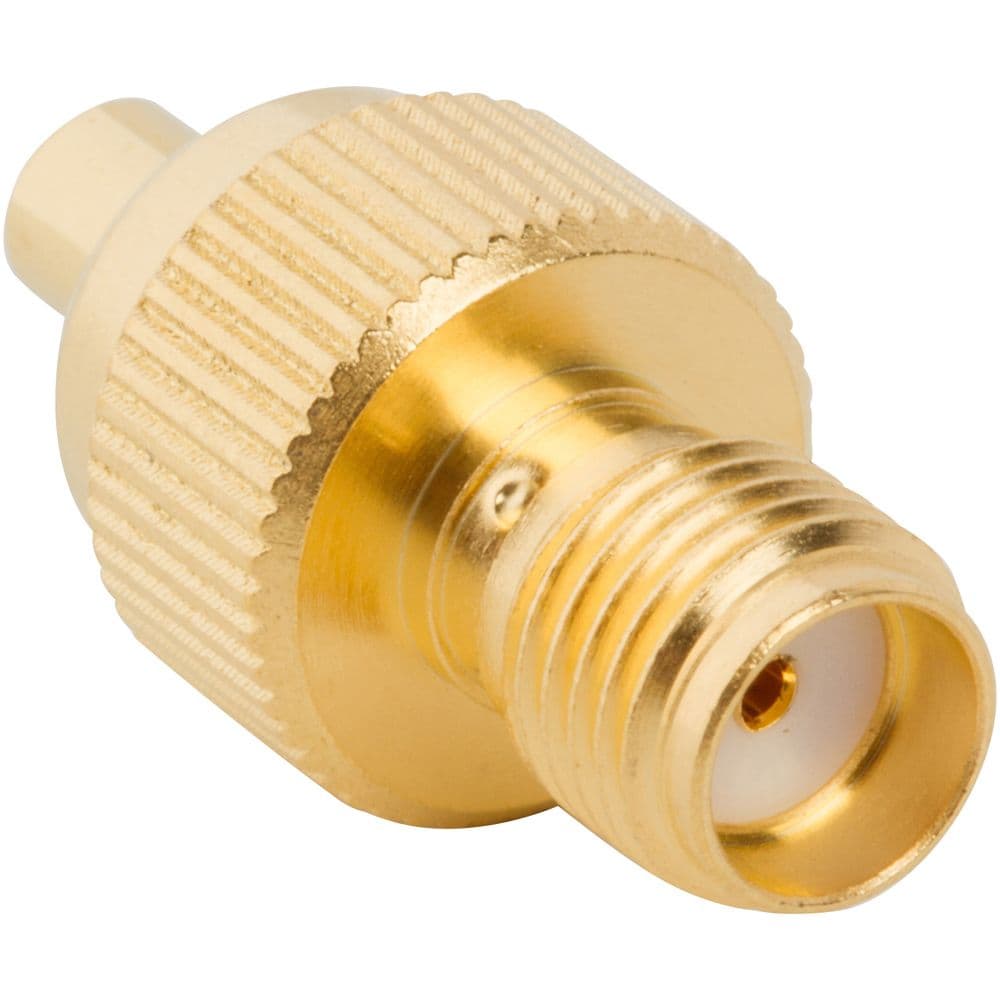

Straight RF connector adapter featuring female-female SMA to MMCX interfaces. This adapter boasts a brass body with gold plating and a PTFE dielectric, ensuring 50 Ohm impedance. With a maximum operating frequency of 6 GHz and a temperature range of -65°C to 165°C, it is constructed with gold-plated copper contacts and is lead-free and RoHS compliant.
Frequency6GHz
PackageSMA
MountingFree Hanging
PolarityNormal
Quick Jump:
Technical Specifications
Amphenol 242143 technical specifications.
General
Adapter Style
Straight
Body Material
Brass
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Gender Type A
Female
Gender Type B
Female
Impedance
50R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
21.18mm
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging
Number of Contacts
1
Operating Frequency
0 to 6 GHz
Orientation
Straight
Packaging
Bag
Plating
Gold
Polarity
Normal
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Weight
0.172842oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 242143 Datasheet
Download the complete datasheet for Amphenol 242143 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
