Right angle RF coaxial connector for cable mounting. Features a brass body with gold plating and a gold-plated brass center contact. Operates up to 6 GHz with 50 Ohm impedance and 0.1dB insertion loss. Dielectric is PTFE, and the connector is rated for 225V and 500 mating cycles. Suitable for temperatures from -65°C to 165°C.
Frequency6GHz
Voltage Rating225V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 252109 technical specifications.
General
Body Material
Brass
Body Plating
Gold
Center Contact Plating
Gold
Contact Material
Brass
Contact Plating
Gold
Depth
5mm
Dielectric Material
PTFE
Frequency
6GHz
Housing Color
Gold
Impedance
50R
Insertion Loss
0.1dB
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
9.2mm
Mating Cycles
500
Max Frequency
6GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 6 GHz
Orientation
Right Angle
Package Quantity
1
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Solder
Voltage Rating
225V
Weight
0.029983oz
Compliance
RoHS
Compliant
Datasheet
Amphenol 252109 Datasheet
Download the complete datasheet for Amphenol 252109 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

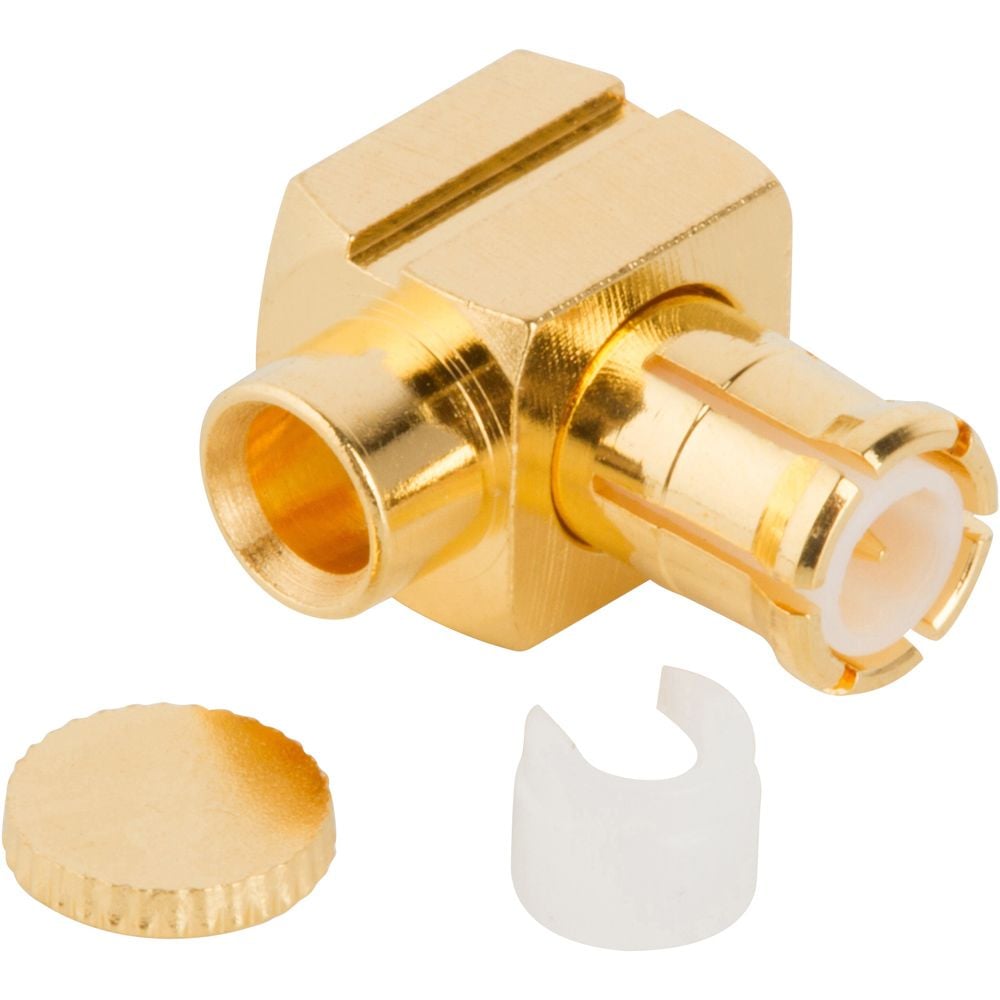

Product Images
