75 Ohm RF connector featuring a straight, free-hanging cable mount orientation. Constructed with a nickel-plated brass body and gold-plated copper/brass center contacts, it utilizes a PTFE dielectric for reliable signal integrity. This connector supports operation from 0 to 3 GHz, with a maximum frequency of 3 GHz and a voltage rating of 250V. Designed for 500 mating cycles, it operates within a temperature range of -65°C to 165°C and is RoHS compliant.
Frequency3GHz
Voltage Rating250V
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
Amphenol 282135-75 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Gold
Contact Material
Copper, Brass
Contact Plating
Gold
Dielectric Material
PTFE
Housing Color
Silver
Impedance
75R
Insulation Material
Polytetrafluoroethylene
Lead Free
Lead Free
Length
29.1mm
Mating Cycles
500
Max Frequency
3GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 3 GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Termination
Crimp
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Amphenol 282135-75 Datasheet
Download the complete datasheet for Amphenol 282135-75 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

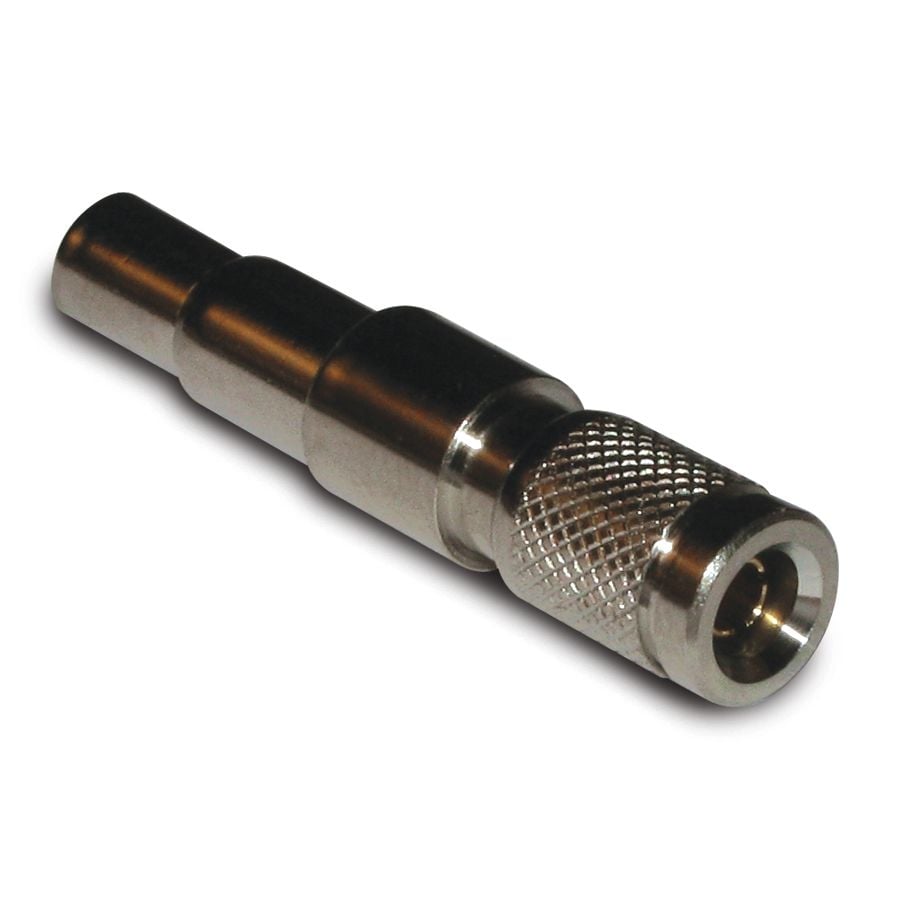

Product Images
