8-position, right-angle memory card socket with 2.54mm pitch and solder termination. Features 8 contacts made of copper alloy and bronze with gold plating, rated for 1A current and 300V AC / 1kV voltage. Operates within a -40°C to 85°C temperature range. Through-hole mounting design with a UL94 V-0 flammability rating.
Voltage Rating1kV
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 52400-25ALF technical specifications.
General
Contact Material
Copper Alloy, Bronze
Contact Plating
Gold
Current Rating
1A
Depth
40mm
Flammability Rating
UL94 V-0
Gender
Female
Height
6.5mm
Lead Free
Lead Free
Length
62mm
Max Current Rating
1A
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
300V
Mount
Through Hole
Number of Contacts
8
Number of Positions
8
Number of Rows
2
Orientation
Right Angle
Package Quantity
20
Packaging
Tray
Pitch
2.54mm
Radiation Hardening
No
RoHS Compliant
No
Series
L04
Termination
Solder
Voltage Rating
1kV
Width
40mm
Compliance
RoHS
Not CompliantNo
Datasheet
Amphenol 52400-25ALF Datasheet
Download the complete datasheet for Amphenol 52400-25ALF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

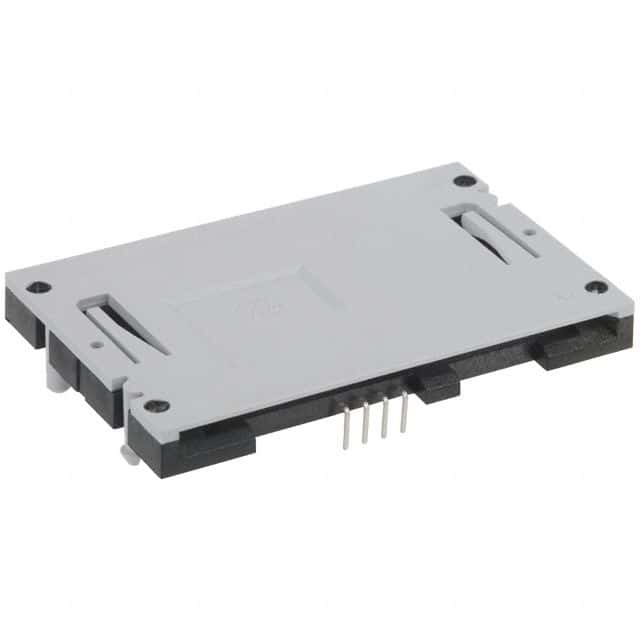

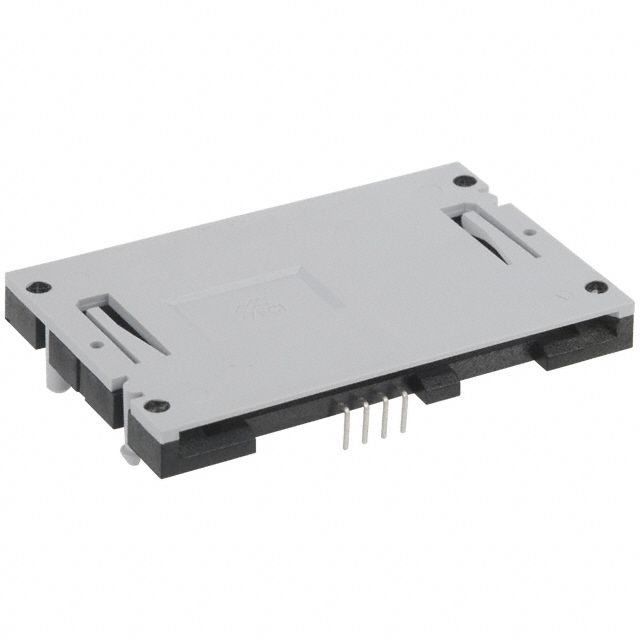

Product Images
