100-contact, 2-row male header for board-to-board applications. Features brass contacts with gold plating, a 0.8mm pitch, and a straight, surface mount termination. Rated for 500mA current and 100V AC, operating from -40°C to 85°C. Offers a 7.7mm mated stacking height and a 6mm depth. Lead-free and RoHS compliant, with a UL94 V-0 flammability rating.
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Amphenol 61083-104402LF technical specifications.
General
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 500mA |
| Depth | 6mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Lead Free | Lead Free |
| Length | 45.8mm |
| Mated Stacking Heights | 16mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 100V |
| Mount | Surface Mount |
| Number of Contacts | 100 |
| Number of Positions | 100 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Pitch | 0.8mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | BergStak®, MezzSelect™ |
| Stack Height | 7.7mm |
| Termination | Solder |
| Width | 6mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 61083-104402LF Datasheet
Download the complete datasheet for Amphenol 61083-104402LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

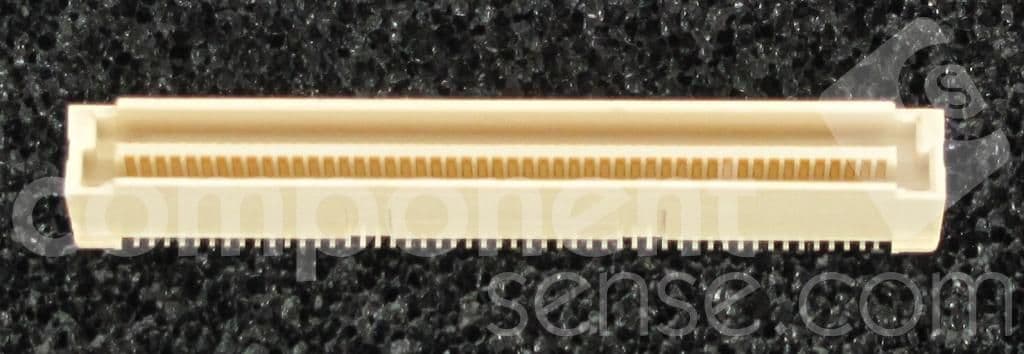

Product Images
