Technical Specifications
Amphenol 82-6163 technical specifications.
General
| Body Material | Brass |
| Body Plating | Nickel |
| Center Contact Plating | Gold |
| Contact Material | Bronze, Copper |
| Contact Plating | Gold |
| Dielectric Material | PTFE |
| Gender | Male |
| Housing Color | Silver |
| Impedance | 50R |
| Insertion Loss | 0.15dB |
| Mating Cycles | 500 |
| Max Frequency | 11GHz |
| Max Operating Temperature | 165°C |
| Min Operating Temperature | -65°C |
| Mount | Flanges, Panel |
| Number of Ports | 1 |
| Operating Frequency | 0 to 18 GHz |
| Orientation | Straight |
| Plating | Nickel |
| Polarity | Standard |
| RoHS Compliant | No |
| Termination | Solder |
| Voltage Rating | 1.5kV |
Compliance
| RoHS | Not Compliant |
Datasheet
Amphenol 82-6163 Datasheet
Download the complete datasheet for Amphenol 82-6163 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

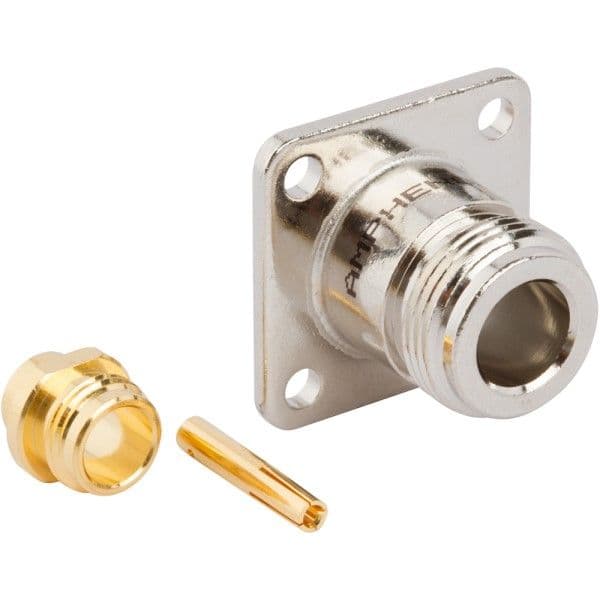

Product Images
