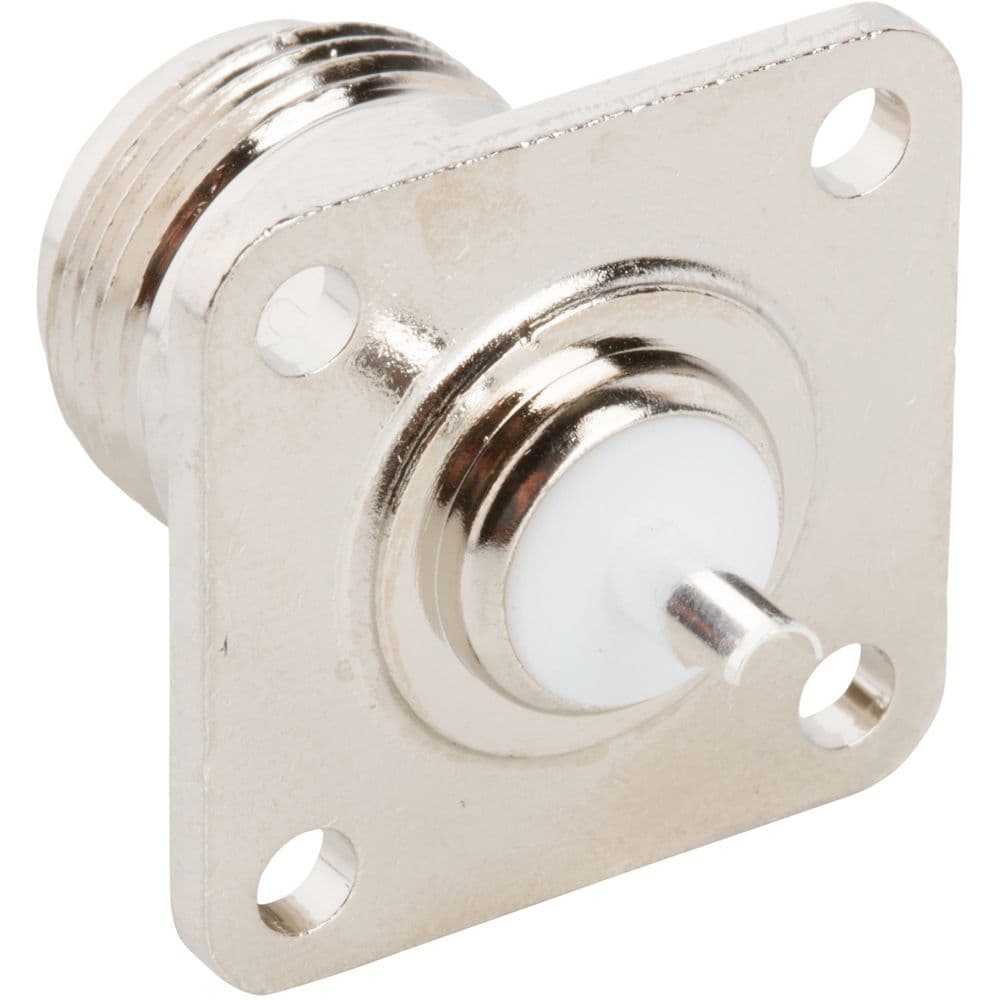

Straight, panel-mount RF connector with 50-ohm impedance and 11 GHz maximum frequency. Features brass body with nickel plating, copper center contact with silver plating, and PTFE dielectric. Operates from -65°C to 165°C with a 1.5kV voltage rating. Termination is solder.
Frequency11GHz
Voltage Rating1.5kV
MountingPanel, Flanges
Quick Jump:
Technical Specifications
Amphenol 82-97 technical specifications.
General
Body Material
Brass
Body Plating
Nickel
Center Contact Plating
Silver
Contact Material
Copper
Dielectric Material
PTFE
Housing Color
Silver
Impedance
50R
Lead Free
Lead Free
Max Frequency
11GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Panel, Flanges
Operating Frequency
0 to 11 Hz to GHz
Orientation
Straight
Package Quantity
1
Packaging
Bulk
RoHS Compliant
No
Termination
Solder
Voltage Rating
1.5kV
Compliance
RoHS
Not Compliant
