6-position, 2-row socket strip receptacle with 2.54mm pitch. Features straight, top entry, through-hole mounting with solder termination. Constructed with bronze contacts and gold plating, housed in blue. Rated for 1kV AC max voltage and operates between -65°C and 125°C. Lead-free and RoHS compliant.
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol 87606-303LF technical specifications.
General
| Color | Blue |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Depth | 5.08mm |
| Gender | Receptacle |
| Housing Color | Blue |
| Lead Free | Lead Free |
| Length | 7.54mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 1kV |
| Mount | Through Hole |
| Number of Contacts | 6 |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Row Spacing | 0.1inch |
| Series | DUBOX™, MezzSelect™, Basics+ |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol 87606-303LF Datasheet
Download the complete datasheet for Amphenol 87606-303LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

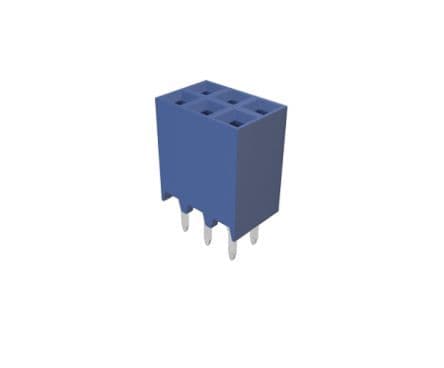

Product Images
