RF coaxial connector, SMA male, straight, cable mount, solder termination, 50 Ohm impedance, operating frequency 0 to 18 GHz. Features stainless steel body with gold plating, copper center contact with gold plating, and PTFE dielectric. Rated for 500 mating cycles and operates from -65°C to 165°C.
Frequency18GHz
PackageSMA
MountingFree Hanging, Cable
PolarityStandard
Quick Jump:
Technical Specifications
Amphenol 901-9201-1ASF technical specifications.
General
Body Material
Stainless Steel
Body Plating
Gold
Package/Case
SMA
Center Contact Plating
Gold
Contact Material
Copper
Contact Plating
Gold
Dielectric Material
PTFE
Frequency
18GHz
Gender
Male
Housing Color
Gold
Impedance
50R
Mating Cycles
500
Max Frequency
18GHz
Max Operating Temperature
165°C
Min Operating Temperature
-65°C
Mount
Free Hanging, Cable
Number of Ports
1
Operating Frequency
0 to 18 GHz
Orientation
Straight
Packaging
Bulk
Plating
Gold
Polarity
Standard
Radiation Hardening
No
RoHS Compliant
Yes
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Amphenol 901-9201-1ASF Datasheet
Download the complete datasheet for Amphenol 901-9201-1ASF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

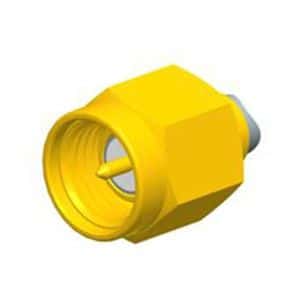

Product Images
