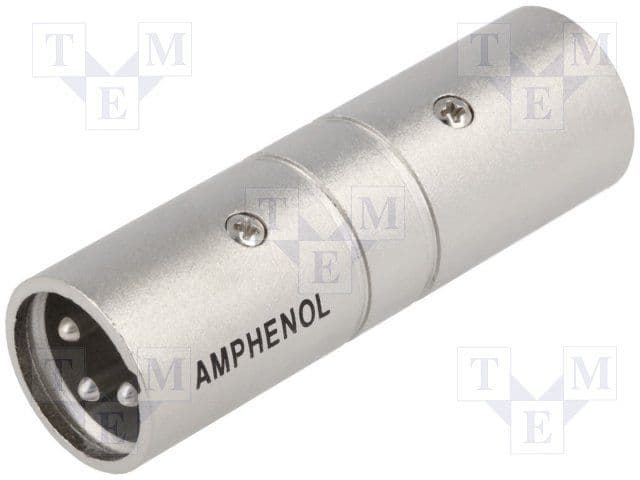

3-position, male XLR adapter with 1 port and 6 terminals. Features a straight, free-hanging mounting orientation within a silver metal housing. Contact material is bronze with silver plating, offering a 15A current rating and 133V voltage rating. This unshielded connector has a diameter of 19mm and a length of 60.4mm, with a test voltage of 1.4kV.
PackageMetal
Voltage Rating133V
Current Rating15A
MountingFree Hanging
Quick Jump:
Technical Specifications
Amphenol AC3M3MW technical specifications.
General
Package/Case
Metal
Color
Silver
Contact Material
Bronze
Contact Plating
Silver
Current Rating
15A
Diameter
19mm
Gender
Male
Height
19mm
Housing Color
Silver
Length
60.4mm
Mount
Free Hanging
Number of Contacts
3
Number of Ports
1
Number of Positions
3
Orientation
Straight
Package Quantity
25
Packaging
Bulk
Plating
Nickel
Ratings
IP40
RoHS Compliant
No
Series
AC
Shielding
Unshielded
Test Voltage
1.4kV
Voltage Rating
133V
Compliance
RoHS
Not Compliant
Datasheet
Amphenol AC3M3MW Datasheet
Download the complete datasheet for Amphenol AC3M3MW to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
