Technical Specifications
Amphenol AX5M technical specifications.
General
| Body Material | Metal |
| Package/Case | Metal |
| Color | Silver |
| Contact Material | Brass |
| Contact Plating | Nickel, Silver |
| Current Rating | 7.5A |
| Diameter | 21.2mm |
| Gender | Male |
| Height | 19mm |
| Length | 74mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -25°C |
| Mount | Cable |
| Number of Contacts | 5 |
| Number of Positions | 5 |
| Orientation | Vertical |
| Package Quantity | 100 |
| Ratings | IP40 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AX |
| Termination | Solder |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol AX5M Datasheet
Download the complete datasheet for Amphenol AX5M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

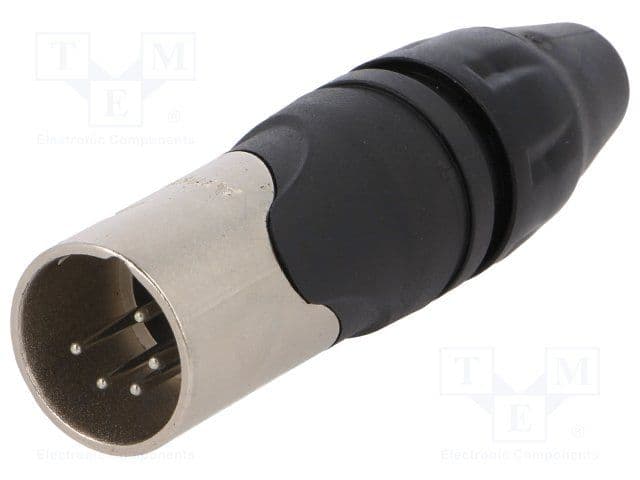

Product Images
