Technical Specifications
Amphenol C01630D00611010 technical specifications.
General
| Approvals | UL, CSA, VDE |
| Body Material | Nylon, Polyamide |
| Package/Case | SIL |
| Color | Blue, Black |
| Contact Gender | Female |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Type | Socket |
| Current Rating | 10A |
| Flammability Rating | UL94 V-0 |
| Gender | Receptacle |
| Length | 73mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging, Cable |
| Number of Contacts | 6 |
| Number of Positions | 7 |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Ratings | IP65, Waterproof, Water Resistant, Dust Tight, IP67 |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Eco|mate™ C016 |
| Strain Relief | Yes (With) |
| Termination | Solder |
| Voltage Rating | 250V |
| Wire/Cable Diameter | 12.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Amphenol C01630D00611010 Datasheet
Download the complete datasheet for Amphenol C01630D00611010 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

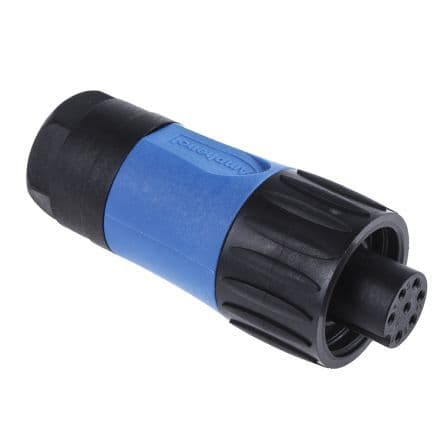

Product Images
