Right-angle FFC/FPC connector with 5 positions and a 1mm pitch. Features top contact location, bronze contacts with tin plating, and a 1A current rating. Operates within a -55°C to 85°C temperature range and has a 100V voltage rating. Housing is black, UL94 V-0 flammability rated, and the termination is kinked pin.
Voltage Rating100V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Amphenol HLW5R-2C7LF technical specifications.
General
Contact Location
Top
Contact Material
Bronze
Contact Plating
Tin
Current Rating
1A
Flammability Rating
UL94 V-0
Height
3.9mm
Housing Color
Black
Lead Free
Lead Free
Length
7.6mm
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
5
Number of Positions
5
Number of Rows
1
Orientation
Right Angle
Package Quantity
350
Packaging
Tray
Pitch
1mm
RoHS Compliant
Yes
Series
HLW-R
Termination
Kinked Pin
Voltage Rating
100V
Voltage Rating (AC)
100V
Width
5.9mm
Wire/Cable Type
Straight
Compliance
RoHS
Compliant
Datasheet
Amphenol HLW5R-2C7LF Datasheet
Download the complete datasheet for Amphenol HLW5R-2C7LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

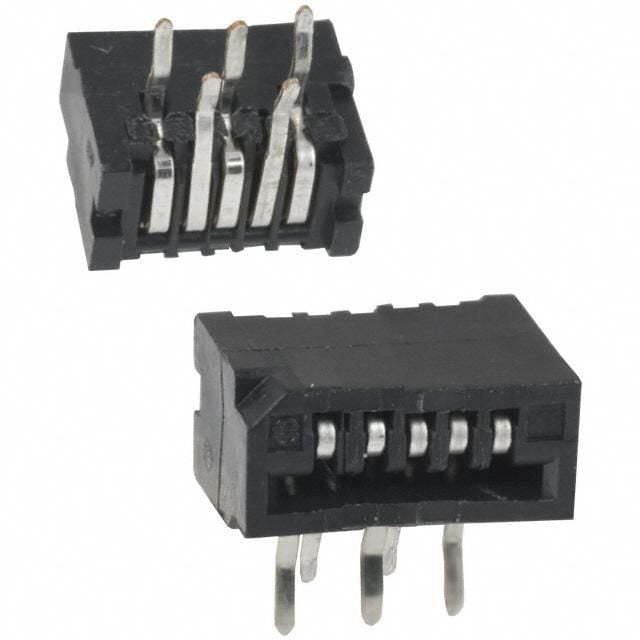

Product Images
