PackageMetal
Voltage Rating250V
Current Rating5A
MountingFree Hanging, Through Hole
Quick Jump:
Technical Specifications
Amphenol L77SDD50S technical specifications.
General
Body Material
Metal, Steel
Package/Case
Metal
Color
Black
Contact Material
Brass
Contact Plating
Gold
Contact Type
Signal
Current Rating
5A
Gender
Receptacle
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Mount
Free Hanging, Through Hole
Number of Contacts
50
Number of Positions
50
Number of Rows
3
Orientation
Straight
Packaging
Tray
Pitch
2.76mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SD
Termination
Solder
Voltage Rating
250V
Compliance
RoHS
Compliant
Datasheet
Amphenol L77SDD50S Datasheet
Download the complete datasheet for Amphenol L77SDD50S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

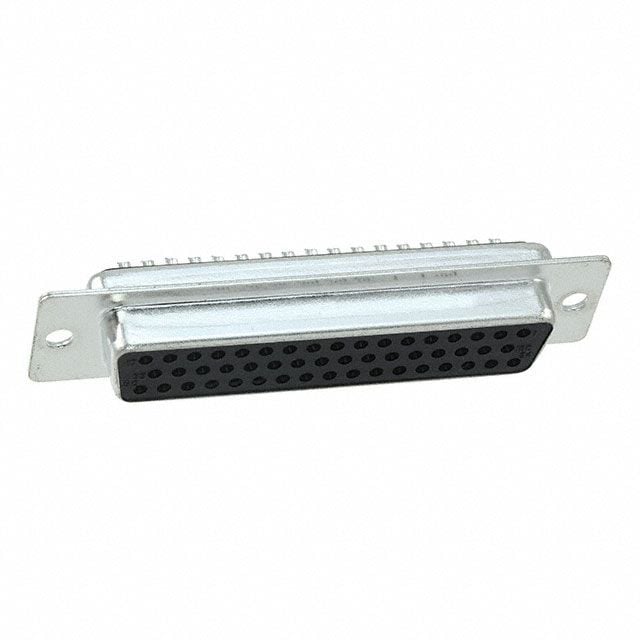

Product Images
